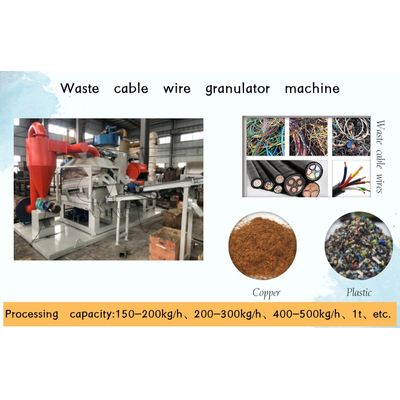

Copper wire granulator machine is a new type equipment to recycle various waste cable wires, which adopts dry type physical separation method to separate copper and plastic.
Working Process:
1, Shredding
Using a shredder to shred the waste cable wires into small pieces about 5-7cm.
2, Crushing
Using a crusher to crush the small pieces into small particles.
3, Air separation
Using an air separator to separate copper and plastic according to the different gravity.
4, Electrostatic separation
Air separator can't separate the wire less than 3mm clearly because the similar gravity. The electrostatic separator can separate copper and plastic according to their conductive properties clearly and easy.
Advantages of copper wire granulator machine:
1. High sorting rate - The separation rate of 99%;
2. Environmental Protection - dry type physical separation method;
3. Small footprint - all-in-one design;
4. Low cost: few labor force.
