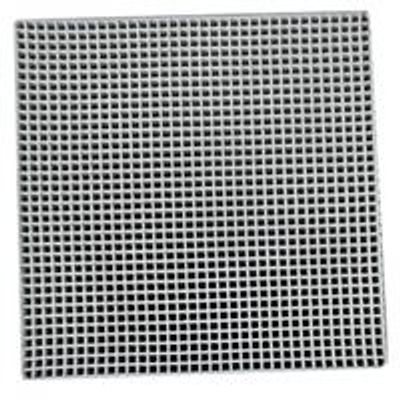

AREACH - Model 32*32 Cells -Cordierite Blocks
Honeycomb ceramics are used for the treatment of industrial exhaust flows loaded with various organic and inorganic contaminants. Cordierite block as a Regenerative Heat Transfer media is the key part for heat storage HTAC (High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, Ceramic media is utilized to seize heat and launch heat to the polluted airstream.Most popular related searches
RTO ceramic
ceramic media
honeycomb ceramics
ceramic honeycomb block
honeycomb block
combustion air
combustive air
furnace
chemical oxidation
- Low pressure loss;
- Low heat expansion;
- High specific heat capacity;
- High specific surface area;
- Low pressure drop;
- Low thermal resistance;
- Low operating and maintenance costs;
- High heat storage;
- Good thermal conductivity

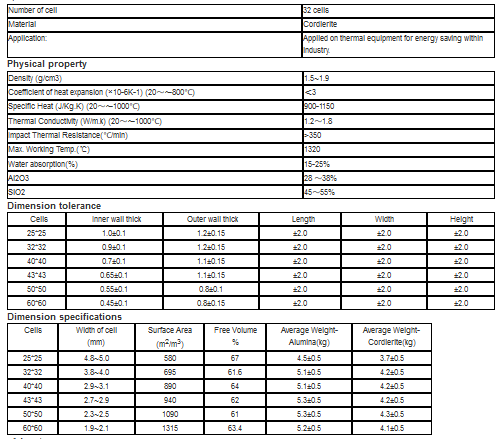

Density :1.5-1.9G/CM3
water Absorption:15-25%
Coefficient of thermal expansion（20-800℃）≤ 3x10-6k -1
Specific Heat (20-1000℃): 900-1150J/Kg.K
Thermal Conductivity (20-1000℃):1.2-1.8W/m.k
impact thermal resistance≥350℃/Min
Strength （ A axis）≥29MPA
Compressive（ B axis）≥6
AL2O3/ Alumina Oxide:28-38%
SiO2 /Silicon Oxide :45-55%
MgO:11-14%
Others<5%
