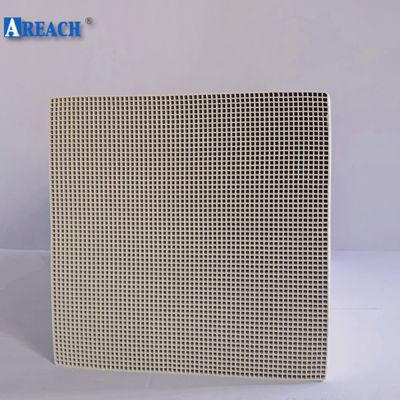

AREACH - Model 60*60 -Cordierite Blocks
Cordierite block is a ceramic heatsink materials applied as heat transfer media in RTO ceramic media bed designs of regenerative Thermal Oxidizers to recover thermal energy. A gridded ceramic blocks which depending on the direction of flow, pick up and release heat rapidly from the waste gas after combustion. it has the great advantage in destroying hazardous and toxic chemical wastes in RTOs and also stable under thermal cycling conditions. Heat Recovery Media will be best determined after reviewing solvent constraints, utility costs, hourly usage and scheduling demands.Most popular related searches
RTO ceramic media
ceramic media bed
regenerative thermal oxidizer
RTO ceramic
thermal cycle
thermal oxidation
ceramic media
thermal oxidizer
toxic chemical
chemical waste
Density :1.5-1.9G/CM3
Water Absorption:15-25%
Coefficient of thermal expansion（20-800℃）≤ 3x10-6k -1
Specific Heat (20-1000℃): 900-1150J/Kg.K
Thermal Conductivity (20-1000℃):1.2-1.8W/m.k
impact thermal resistance≥350℃/Min
Strength （ A axis）≥29MPA
Compressive（ B axis）≥6
Material Chemical Composition
AL2O3/ Alumina Oxide:28-38%
SiO2 /Silicon Oxide :45-55%
MgO:11-14%
Others<5%
