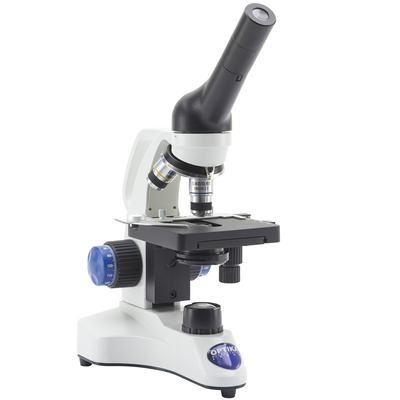

Optika - Model Ecovision-B-20CR -Cordless Monocular Microscope
FromOptika Srl
Cordless monocular microscope ideal for students and mainly primary schools, with achromatic lenses, eyepiece, finite optical system, coaxial focusing, mechanical stage and LED illumination with rechargeable batteries (not included). Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination.
Most popular related searches
- Head: Monocular, 45° inclined; 360° rotating.
- Eyepiece: WF10x/18 mm, secured by screw.
- Nosepiece: Triple ball bearings revolving nosepiece, reversed.
- Objectives:
- Achromatic 4x/0.10, W.D. 27.2 mm.
- Achromatic 10x/0.25, W.D. 7.4 mm.
- Achromatic 40x/0.65, W.D. 0.6 mm.
- All with anti-fungus treatment.
- Specimen stage: Double layer, 105×95 mm, xy moving range 50×15 mm.
- Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
- Condenser: N.A. 0.65 with iris diaphragm.
- Illumination: 0.5 W LED, with brightness control, rechargeable batteries (not included).
- Color temperature: 6,300 K. 100-240Vac/5Vdc external power supply.
