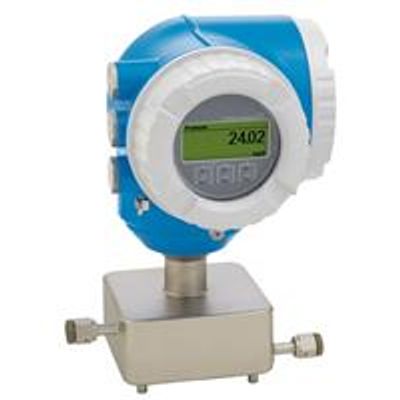

Proline Cubemass - Model C 300 -Coriolis Flowmeter

• Space-saving installation – compact single-tube design

• Fewer process measuring points – multivariable measurement (flow, density, temperature)

• Suitable for skids – leightweight sensor

• Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses

• Reduced complexity and variety – freely configurable I/O functionality

• Integrated verification – Heartbeat Technology

Gas

• Measuring principle

  Coriolis

• Product headline

  Compact sensor for smallest quantities with a compact, easily accessible transmitter. Measuring accurately smallest quantities of liquids and gases.

• Sensor features

  Space-saving installation – compact single-tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Suitable for skids – lightweight sensor. Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄"). Process pressure up to 400 bar (5800 psi).

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

• Nominal diameter range

  DN 8 to 50 (³⁄₈ to 2")

• Wetted materials

  Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
  Connection: Tantalum; 702 (UNS R60702)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.10 %
  Volume flow (liquid): ±0.10 %
  Mass flow (gas, Tantalum only): ±0.50 %
  Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 70 000 kg/h (0 to 2570 lb/min)

• Max. process pressure

  PN 40, Class 300, 20K

• Medium temperature range

  Tantalum: –50 to +150 °C (–58 to +302 °F)
  Zirconium: –50 to +205 °C (–58 to +401 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available"

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA WirelessHART
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

Liquids

• Measuring principle

  Coriolis

• Product headline

  Compact sensor for smallest quantities with a compact, easily accessible transmitter. Measuring accurately smallest quantities of liquids and gases.

• Sensor features

  Space-saving installation – compact single-tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Suitable for skids – lightweight sensor. Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄"). Process pressure up to 400 bar (5800 psi).

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

• Nominal diameter range

  DN 1 to 6 (¹⁄₂₄ to ¹⁄₄")

• Wetted materials

  Measuring tube: 1.4539 (904L)
  Connection: 1.4539 (904L); 1.4404 (316/316L)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.10 %
  Volume flow (liquid): ±0.10 %
  Mass flow (gas): ±0.50 %
  Density (liquid): ±0.0005 g/cm3

• Measuring range

  0 to 1000 kg/h (0 to 37 lb/min)

• Max. process pressure

  PN 40, Class 300, 10K, 400 bar (5800 psi)

• Medium temperature range

  –50 to +205 °C (–58 to +401 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA WirelessHART
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)"

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

• Pressure approvals and certificates

  CRN

• Material certificates

  3.1 material

Density/Concentration

• Measuring principle

  Coriolis

• Product headline

  Compact sensor for smallest quantities with a compact, easily accessible transmitter. Measuring accurately smallest quantities of liquids and gases.

• Sensor features

  Space-saving installation – compact single-tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Suitable for skids – lightweight sensor. Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄"). Process pressure up to 400 bar (5800 psi).

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

• Nominal diameter range

  DN 1 to 6 (¹⁄₂₄ to ¹⁄₄")

• Wetted materials

  Measuring tube: 1.4539 (904L)
  Connection: 1.4539 (904L); 1.4404 (316/316L)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm3

• Measuring range

  0 to 1000 kg/h (0 to 37 lb/min)

• Max. process pressure

  PN 40, Class 300, 10K, 400 bar (5800 psi)

• Medium temperature range

  –50 to +205 °C (–58 to +401 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA WirelessHART
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

• Pressure approvals and certificates

  CRN

• Material certificates

  3.1 material
