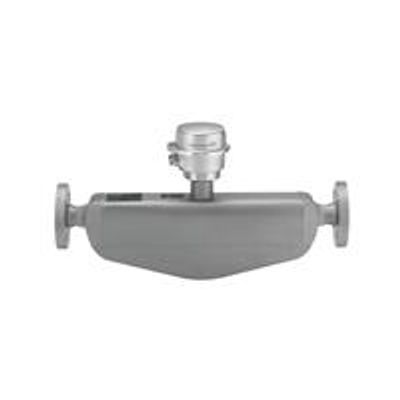

Proline Promass - Model H 100 -Coriolis flowmeter

FromEndress+Hauser Group Services AG

SHARE

The chemically resistant single-tube flowmeter with an ultra-compact transmitter. The chemically resistant single-tube design of the Promass H is destined for applications requiring highest corrosion resistance. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Designed for applications where space is a premium, Promass H 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers.

Most popular related searches

hazardous area ATEX

process monitoring

flow monitoring

chemical safety

Maximum safety for chemically aggressive fluids – corrosion-resistant wetted parts
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in/outlet run needs
Space-saving transmitter – full functionality on the smallest footprint
Time-saving local operation without additional software and hardware – integrated web server
Integrated verification – Heartbeat Technology

Measuring principle operates independently of physical fluid properties such as viscosity or density
Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.

Device properties

Measuring tube made of Tantalum, Zirconium
Nominal diameter: DN 8 to 50 (3/8 to 2")
Medium temperature up to +205 °C (+401 °F)
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available

Measuring principle

Coriolis
Product headline

The chemically resistant single‐tube flowmeter with an ultracompact transmitter. Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.
Sensor features

Maximum safety for chemically aggressive fluids – corrosionresistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2").
Transmitter features

Space‐saving transmitter – full functionality on smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra‐compact transmitter housing. High ingress protection: IP69.
Nominal diameter range

DN 8 to 50 (³⁄₈ to 2")
Wetted materials

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)
Measured variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. measurement error

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas, Tantalum only): ±0.5 %
Density (liquid): ±0.0005 g/cm³
Measuring range

0 to 70 000 kg/h (0 to 2570 lb/min)
Max. process pressure

PN 40, Class 300, 20K
Medium temperature range

Tantalum: –50 to +150 °C (–58 to +302 °F)
Zirconium: –50 to +205 °C (–58 to +401 °F)
Ambient temperature range

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)
Sensor housing material

1.4301 (304), corrosion resistant
Transmitter housing material

Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)
Degree of protection

Standard: IP66/67, type 4X enclosure
Option: IP69
Display/Operation

4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
Outputs

4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Inputs

None
Digital communication

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power supply

DC 20 to 30 V
Hazardous area approvals

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product safety

CE, C-Tick, EAC marking
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for traceable verification cording to ISO 9001:2008 – Section 7.6a (TÜV attestation)
Pressure approvals and certificates

PED, CRN
Material certificates

3.1 material

Gas

Measuring principle

Coriolis
Product headline

The chemically resistant single‐tube flowmeter with an ultracompact transmitter. Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.
Sensor features

Maximum safety for chemically aggressive fluids – corrosionresistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2").
Transmitter features

Space‐saving transmitter – full functionality on smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra‐compact transmitter housing. High ingress protection: IP69.
Nominal diameter range

DN 8 to 50 (³⁄₈ to 2")
Wetted materials

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)
Measured variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. measurement error

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas, Tantalum only): ±0.5 %
Density (liquid): ±0.0005 g/cm³
Measuring range

0 to 70 000 kg/h (0 to 2570 lb/min)
Max. process pressure

PN 40, Class 300, 20K
Medium temperature range

Tantalum: –50 to +150 °C (–58 to +302 °F)
Zirconium: –50 to +205 °C (–58 to +401 °F)
Ambient temperature range

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)
Sensor housing material

1.4301 (304), corrosion resistant
Transmitter housing material

Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)
Degree of protection

Standard: IP66/67, type 4X enclosure
Option: IP69
Display/Operation

4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
Outputs

4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Inputs

None
Digital communication

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power supply

DC 20 to 30 V
Hazardous area approvals

ATEX, IECEx, cCSAus, INMETRO, NEPSI
Product safety

CE, C-Tick, EAC marking
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
Heartbeat Technology complies with the requirements for traceable verification cording to ISO 9001:2008 – Section 7.6a (TÜV attestation)
Pressure approvals and certificates

PED, CRN
Material certificates

3.1 material

Density/Concentration

Measuring principle

Coriolis
Product headline

The chemically resistant single‐tube flowmeter with an ultracompact transmitter. Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.
Sensor features

Maximum safety for chemically aggressive fluids – corrosionresistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2").
Transmitter features

Space‐saving transmitter – full functionality on smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra‐compact transmitter housing. High ingress protection: IP69.
Nominal diameter range

DN 8 to 50 (³⁄₈ to 2")
Wetted materials

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)
Measured variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. measurement error

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas, Tantalum only): ±0.5 %
Density (liquid): ±0.0005 g/cm³
Measuring range

0 to 70 000 kg/h (0 to 2570 lb/min)
Max. process pressure

PN 40, Class 300, 20K
Medium temperature range

Tantalum: –50 to +150 °C (–58 to +302 °F)
Zirconium: –50 to +205 °C (–58 to +401 °F)
Ambient temperature range

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)
Sensor housing material

1.4301 (304), corrosion resistant
Transmitter housing material

Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)
Degree of protection

Standard: IP66/67, type 4X enclosure
Option: IP69
Display/Operation

4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
Outputs

4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Inputs

None
Digital communication

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power supply

DC 20 to 30 V
Hazardous area approvals

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product safety

CE, C-Tick, EAC marking
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for traceable verification cording to ISO 9001:2008 – Section 7.6a (TÜV attestation)
Pressure approvals and certificates

PED, CRN
Material certificates

3.1 material
