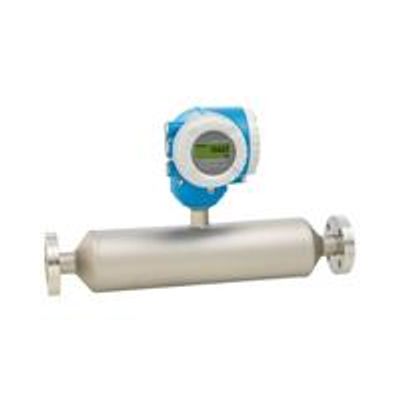

Proline Promass - Model I 300 -Coriolis Flowmeter

• Measuring principle operates independently of physical fluid properties such as viscosity or density

• Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

Device properties

• Straight, easy-to-clean single-tube system

• TMB technology

• Measuring tube made of Titanium

• Compact dual-compartment housing with up to 3 I/Os

• Backlit display with touch control and WLAN access

• Remote display available

• Measuring principle

  Coriolis

• Product Headline

  Combines in-line viscosity and flow measurement with a compact, easily accessible transmitter. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

• Measuring principle

  Coriolis

• Product headline

  Combines in-line viscosity and flow measurement with a compact, easily accessible transmitter. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

• Sensor features

  Energy-saving – full bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. Straight, easy-to-clean single-tube system. TMB technology.

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

• Nominal diameter range

  DN 8 to 80 (⅜ to 3")

• Wetted materials

  Measuring tube: 1.4539 (904L)
  Connection: 1.4404 (316/316L)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.15 % (standard), ±0.10 % (option)
  Volume flow (liquid): ±0.15 %
  Mass flow (gas): ±0.75 %
  Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 180 000 kg/h (0 to 6615 lb/min)

• Max. process pressure

  PN 100, Class 600, 63K

• Medium temperature range

  –40 to +150 °C (–40 to +302 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

• Degree of protection

  Standard: IP66/67, Type 4X enclosure
  Option: IP69

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  3-A, EHEDG, cGMP

Density/Concentration

• Measuring principle

  Coriolis

• Product headline

  Combines in-line viscosity and flow measurement with a compact, easily accessible transmitter. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

• Sensor features

  Energy-saving – full bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. Straight, easy-to-clean single-tube system. TMB technology.

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

• Nominal diameter range

  DN 8 to 80 (⅜ to 3")

• Wetted materials

  Measuring tube: Titanium grade 9
  Connection: Titanium grade 2

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

• Max. measurement error

  Mass flow (liquid): ±0.10 %
  Volume flow (liquid): ±0.10 %
  Mass flow (gas): ±0.50 %
  Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 180 000 kg/h (0 to 6600 lb/min)

• Max. process pressure

  PN 100, Class 600, 63K

• Medium temperature range

  –50 to +150 °C (–58 to +302 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4301/1.4307 (304L), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

• Degree of protection

  IP66/67, type 4X enclosure
  IP69

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  3-A, EHEDG, cGMP
