Regin AB

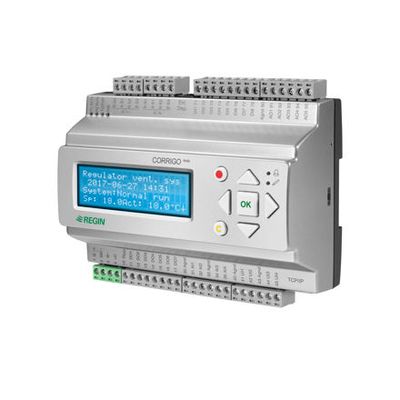

Corrigo Ardo - Model VCA152DW-4 -Ventilation Controller
FromRegin AB
Corrigo Ardo are controllers for ventilation control that make every step from installation to operation and maintenance easier than ever. Simply connect the controller, enter any settings as desired and start up. It can be used either stand-alone or integrated into a network. It has built-in support for many different languages and is designed for mounting on a DIN-rail or in a cabinet door. It can be connected to CLOUDigo for the possibility to monitor the system from any location.
Most popular related searches
- Dimensions, external (WxHxD): 149*121*60 mm
- Display: Yes
- Display type: Backlit (LCD), 4 rows of 20 characters
- Supported protocols: EXOline, Modbus, BACnet
- RS485 ports: 1
- Ethernet ports: 1
- Display ports: 1
- AI: 4
- UI: 0
- DI: 4
- CI: 0
- AO: 3
- UO: 0
- DO: 4
- Analogue inputs type (AI): PT1000/Ni1000/Ni1000LG/0-10 V
Specifications for Corrigo Ardo 5.0 – configurable 24 V ventilation controller
- Power Supply: 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
- Battery type: CR2032 replacable Lithium cell
- Battery life time: 5 years
- Protection class: IP20
- Ambient temp: 0…50 °C
- Storage temp: -20…70 °C
- Mounting: DIN-rail
- Terminal type: Screw Terminal
- Deteachable terminal: Yes
- Terminal wire size: 3 mm²
- Material, housing: Polycarbonate (PC)
- Material, base: Polycarbonate (PC)
