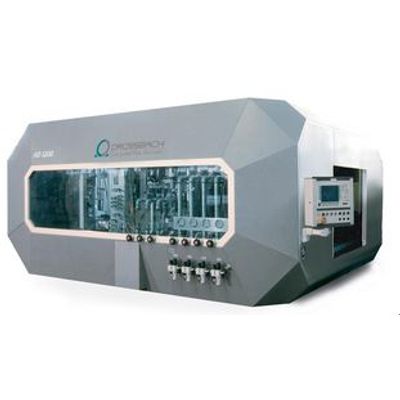

Drossbach - Model HD 1200 -Corrugated Plastic Pipes Machine

Production of corrugated plastic pipes with high production speed thanks to directly water-cooled mold blocks and an integrated full vacuum system.

Most popular related searches

Aluminium master mold blocks are carrying the mold block inserts. These are running in the machine on steel paving tiles follow the shuttle system.
Full automatic, centralized lubrication system guarantees maintenance-free operation.
After having adjusted, the die head is fixed to the corrugator by means of centering ring, no afterwards alignment necessary.
The parking station and the shuttle principle allow vairiable pipe length even with inline produced sockets.
Mold block inserts, fixed with quick fasteners, ensure rapid tool exchange.
The complete tools for ID 150 up to ID 400 (6" - 16") are compatible with HD 500 and HD 800; complete tools from ID 500 up to ID 800 (20" - 32") are compatible with HD 1800 as well.
The machine can be electronically adjusted in vertical and horizontal direction.
The complete electronic parts in the seperate control cabinet are cooled by an air conditioner.
The spiral-mandrel die head cares for a constant quality of the corrugated pipe with a consistent even wall distribution.
Computer-controlled operation and monitoring of the complete production process; remote control and servicing available.

Characteristics
