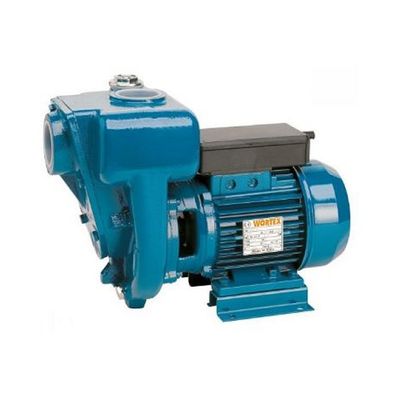

Cospet - Model DIG 50 -Selfpriming Monoblock Pump
FromCospet
Selfpriming monoblock water pumps with open impeller. The check valve inside the suction outlet avoids the syphon effect when stopping and assures the automatic re-start each time. The pump selfprimes even if partially filled and if the suction hose is completely empty. Suitable to drain clean or slightly dirty water and in flood irrigation systems.
Most popular related searches
OPERATING CONDITIONS
- Liquid temperature up to 60°C
- Ambient temperature up to 40°C
- Total suction lift up to 7 mt.
- Continuous duty
MOTOR
- Two-Pole induction motor
- (n = 2850 min-1)
- Insulation Class F
- Protection IP 44
MATERIALS
- Pump body Cast Iron
- Motor Support Cast Iron
- Impeller Cast Iron
- Shaft with motor Stainless Steel
- Mechanical seal Carbon/Ceramic
- Capacity:m3/h = 24 - l/m = 400
- Total head:H(m) = 18
- Power:kW = 1,1
- Voltage:230V-50Hz
