CAI - Model CSS-CFSA -Counterweight & Freestanding Single Anchor

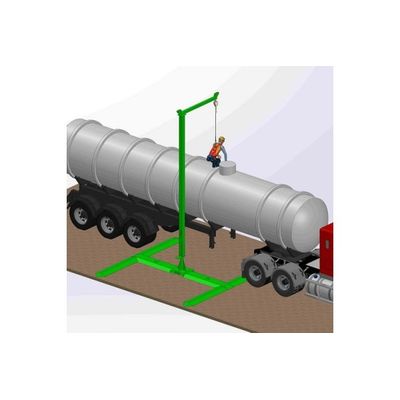

CAI Safety offers a highly versatile and durable anchor called the Counterweight & Freestanding Single Anchor System for Truck and Railcar applications. The anchor can be outfitted with a variety of bases including a fixed, portable, or counterweight concrete. The lightweight design allows for easy mobility around the job site with a pallet jack or forklift.

With four different bases to use with this anchor, the Single Anchor system can be used on virtually any bus, railcar, RV or tanker/truck fall protection need. All systems are rated for one person use and provide 360° mobility within the safe working radius. This system is OSHA & ANSI compliant. This modular system is designed for easy adjustment and maximizing flexibility without sacrificing safety.

• Extended rail-length increases safe working area
• Extended anchor height enhances capabilities in various applications
• Dual user systems contain two independent by-passing horizontal rails rated for one worker each
• Helps increase worksite efficiency and safety for multiple workers
• Provides additional working coverage compared to previous models
• Rotating mast up to 360 degrees
• Stainless Steel Anchor Trolley
• Aluminum Extruded Glyde-Saf Trolley Rail
• Flip up rotation handle
• Rugged powder coated steel construction
• Provides overhead tie-off point for vehicle maintenance worker
• System does not require any vehicle counterweight
• High strength durable steel construction
• Integrated rescue device mounting hardware
• Complete with self-retracting lifeline, carabiner and 25ft. tagline (harness not included unless chosen in options)

SPECIFICATIONS

• Install Type: Temporary/Portable, Fixed
• Number of Users: Single, Dual (based on selections)
• Product Color: Safety Yellow
• Product Type: Anchor Point
• Recommended Industry: Construction, Mining, Transportation
• Standards/Approvals: .OSHA 1962.502 | OSHA 1910.140 | EN795.2012 | CEN/TS 16415:2013
• Capacity: One person with a combined weight (clothing, tools, etc.) of no more than 310 lb. (140 kg)
• Maximum Arresting Force: All connecting subsystems (SRLs/SRDs, Energy-Absorbing Lanyards, etc.) used with the Jib Boom must limit the Maximum Arresting Force to 1,350 lbf (6.0 kN)
• Maximum Deflection: The Maximum Deflection of the system during a fall arrest is measured to be 17.0 in. (432 mm). This value should be added to any calculated Fall Clearance requirements for your connecting subsystem.
• Concrete: For counterweight base, concrete filled with 4,000 psi Concrete
