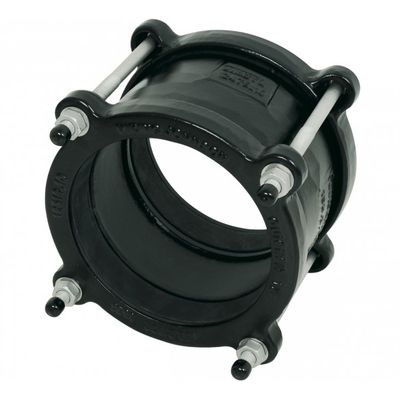

Viking Johnson QuickFit - Couplings
QuickFit products accommodate angular deflection between pipes. This makes installation easy and allows pipeline movement, such as ground settlement. Long radius curves can also be accommodated, avoiding the need for special fittings with couplings up to 6º and flange adaptors to 3º. No need for specialist tools – just a 19mm A/F deep reach socket and torque wrench. QuickFit couplings are capable of accommodating 10mm of expansion/contraction per fitting, flange adaptors 5mm.This reduces the need for supplementary expansion joints or bellows. All cast QuickFit flange adaptors are supplied as standard with an extended sealing face, and are suitable for use with wafer style (butterfly) valves. Fabricated flange adaptors can be supplied with either an extended sealing face or clear bore option.
1. Simple to Fit
Captive, non-rotating bolt heads require a single spanner/ torque wrench. Installation is simple with one bolt size (M12) and one bolt torque (55-65Nm) for the majority of pipe materials
2. Excellent Corrosion Protection
Metal components are coated with Rilsan Nylon 11 which is WRAS approved for use with potable water. The nuts and bolts are Sheraplex coated to WIS 4-52-03, offering long term protection against corrosion, impact and abrasion to ensure continued reliable performance.
3. Flexible Fit
QuickFit flange adaptors are supplied as standard with flanges drilled to BS EN 1092 PN10 and PN16. Other options are available - see Specification Page for details of fabricated products available
4. Quick by Name
All QuickFit products are pre-assembled allowing quick and efficient installation, even in the most difficult of conditions without the need for on-site dismantling.
