ESI - Model CPI -CPI Separator

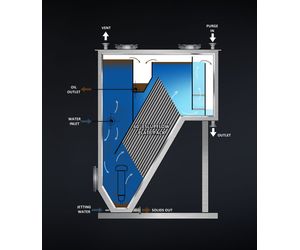

This ESI CPI separator is generally considered an “upflow” separator. The CPI “Pack” is designed to function installed at an angle of 60 degrees to the horizontal plane with plates spaced 25mm to minimize plugging. Water enters the inlet nozzle and distribution header low in the primary solids/sludge chamber. The heaviest solids/sludge settle in the primary chamber for discharge through the clean out nozzle. Water flows down and through the perforated distribution baffle. The contaminated liquid enters from the bottom of the pack and flows up through the pack end. Solids accumulate on the plates and counterflows the waste flow to the bottom of the plates.
