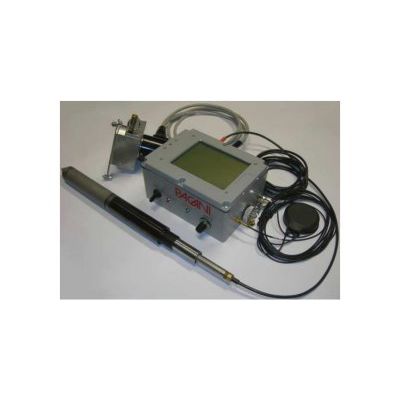

Pagani - Model TGAS07B -CPTu Touchscreen Digital Acquisition System

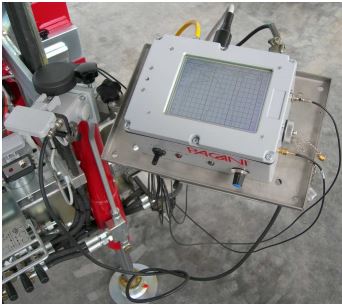

To satisfy the growing demand for a strong and easyto-use CPTu system, Pagani Geotechnical Equipment designed a new touchscreen CPTu acquisition unit that can be used outdoor with any weather condition. Our touchscreen digital acquisition system TGAS07 simplifies and speeds up the procedure of acquisition without the need for a notebook. Thanks to its qualities as water-resistance, sunlight readable touchscreen and extended temperature range, it is perfect to be used in harsh environmental conditions.
The internal memory can save more than 2500 complete CPTu tests. Furthermore, the TGAS07 has a GPS detector with position resolution accuracy of less than 2,5 meters and a GPRS module giving you the possibility to send CPTu tests directly from the tested field to the office by e-mails. If a GSM network is not available, it is possible to download data connecting the system to the company network or to a notebook by using a standard ethernet cable.

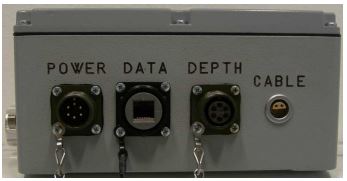

- Voltage range : 9V DC - 18V DC
- Max absorption : 1,5 A
- Typical absorption : 0,5 A
- Temperature range : -20 ÷ +70 °C
- GPS position resolution accuracy : < 2,5 m
- Encoder input : Push-pull / Line-driver encoder

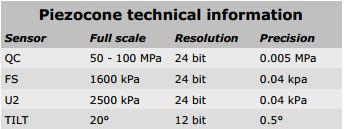

- Piezocone input : Serial RS485
- Ethernet port : 10/100 Mbit (for CPTu tests download)
- Power supply voltage : 12V DC
- GPRS connection : Standard GPRS antenna
- GPS connection : Standard GPS antenna
- Sim card : Standard GSM sim card
