Aanderaa - Model OLM -Crane Operation Limiter Software

The feature may be programmed to include many other features such as:

• maximum slew protection if the crane does not have a slip ring
• warning of crane operation in inhibited, no-go-zones
• conservative anti-collision protection between crane booms
• off-board indication in an AOPS configuration

The operator will have a clear and easy to read situation chart showing the crane boom on top of the mapped critical deck area or other area within the crane reach.

This feature will assist in:

• protect personnel and assets
• collision avoidance through slew and boom limits
• prevents dropped-object and collisions by creating multiple “no-go zones”

The system use an absolute encoder. The term “absolute” mean that the sensor will have an absolute position reference and will not require any set-up after the initial installation. The absolute position is not affected or lost if power is disconnected or the crane is moved without the sensor being powered.

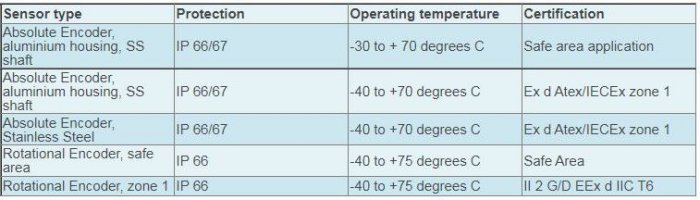

The Slew Position Encoder is available in many versions, all ingress protected to IP66. The unit is available for safe area application or certified and approved both by Atex and IECEx to comply with the Ex zone 1 requirement and in different material.
