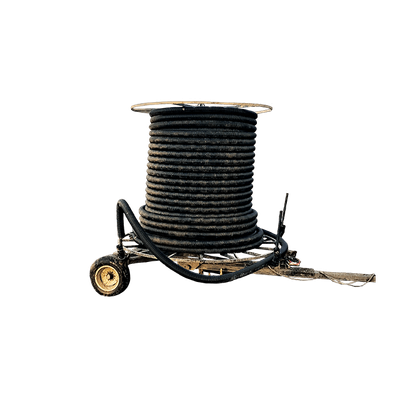

Crary - Stringer Trailers for Efficient Tile Laying
Crary Stringer Trailers offer a comprehensive solution for transporting and laying tiles efficiently in agricultural settings. With options including single-axle, dual-axle, truck-mounted, and 3-point models, these trailers cater to various operational needs. They are engineered to manage tile rolls up to 11 feet in diameter, preventing disorganization and ensuring efficient handling on fields. The dual-axle version features a walking tandem axle to enhance ride quality and an electric brake system for precise control of table speed. Built with heavy-duty materials, these trailers incorporate a bolt-in replaceable table spindle and come with a standard heavy-duty electric/hydraulic pump which facilitates easy table tilting through a lift switch. For enhanced mobility, they are equipped with 11L-15 8 ply flotation tires and a pin hitch for secure attachment. These features are designed to minimize manual labor while optimizing on-site efficiency.
Maximize your field efficiency while laying tile with a Crary® Stringer Trailer. With four hauling options and table diameters up to 11 feet, match your operation with the perfect trailer to transport tile rolls to your field. Using a Stringer Trailer eliminates unorganized and unspooled rolls. Take the work out of handling those bulky rolls and quickly and effortlessly move them with a Crary Stringer Trailer. Check with your local Crary dealer to learn more about Stringer Trailer options.
- Walking tandem axle – improves ride in rough field conditions.
- Heavy duty construction with bolt-in replaceable table spindle.
- Electric brake control & lift switch with 30-foot of rubberized cord.
- 11-foot diameter table with folding wings (narrow width at 8.5 feet).
- Electric brake spool reel – allows control of table speed.
- Standard heavy duty electric/hydraulic pump with tilt cylinder.
- Simple manual lock for table loading and when towing trailer.
- Tail light kit for on-road travel.
- 11L-15 8 ply flotation tires.
- Pin hitch.
- Wide, heavy duty, high speed tires: 225-75R15
- Running lights standard.
- Simple, effective friction pivot table brake.
- Heavy duty 8-bolt hub with 9.5-foot main table.
- Heavy duty construction with bolt-in replaceable table spindle.
- Standard heavy duty electric/hydraulic pump with tilt cylinder.
- Includes 4 adjustable tile guides that help unrolling maxi rolls.
- Full 10.34″ diameter heavy steel mast, with over 8 feet of usable height.
- Pin hitch.
- Designed for 3/4 and 1-ton chassis.
- Electric/hydraulic pump with optional enclosure.
- Standard heavy duty electric/hydraulic pump with tilt cylinder.
- Heavy duty construction with bolt-in replaceable table spindle.
- Electric brake for spool reel – allows control of table speed for proper tile stringing.
- 11-foot diameter table with folding wings for tile loading and allows narrow width at 8.5 feet.
- Installation fabrication required to mount onto truck chassis.
- Category 2 or 3 hitch.
- Electric brake for spool reel with corded remote – allows control of table speed for proper tile stringing.
- Single circuit tractor hydraulics used for table pivot.
- 11-foot diameter table with folding wings for tile loading and allows narrow width at 8.5 feet.
- Heavy duty construction with bolt-in replaceable table spindle.
