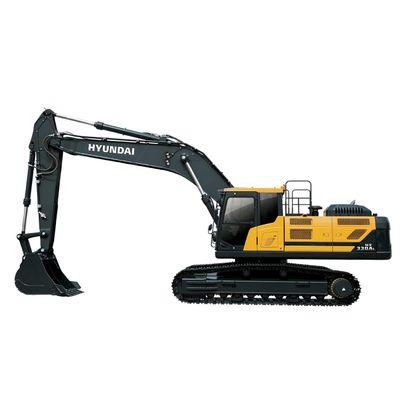

Hyundai - Model HX380A L -Crawler Excavator
Powered by a Cummins B6.7 Stage 5/Tier 4 Final diesel engine, the HX380A L complies with the international Stage 5 emissions control standard. New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs. All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HX380A L is designed to be economically rugged and reliable for longer up time, reduced operating cost and improved productivity. Through a combination of innovative hydraulic system enhancements, Hyundai A-Series HX excavators achieve faster cycle speeds than previous models, which increases productivity.
- Agriculture
- Forestry
- Landscaping
- Military
- Public Works/ Municipalities
- Railroad
- Road-Highway/ Paving
- Scrap Recycling
- Engine Model: Cummins L9
- Net Power: 304HP (227 kw ) at 2,200 rpm
- Operating Weight: 35,910 kg (79,170 lbs)
- Bucket Range: 1.44 m3 (1.88 yd3 )
- Swing Speed: 10.2 rpm
- Travel Speed (MPH): 6.1 km/hr (3.8 mph) / 3.4 km/hr (2.1 mph)
- Max. Digging Depth (FT/IN): 7,360 (24 ft 2 in)
- Max. Digging Reach: 11,150 mm (36 ft 7 in)
- Tail Swing Radius (FT/IN): 4,360 (14` 4")
- Bucket Breakout Force: 22,100 [24,110] kgf (48,720 [53,150 ] lbf)
- Arm Crowd Force: 14,800 [16,150] kgf 32,630 [35,600] lbf ) ISO
Performance
- Cummins Performance Engine (NEW)
- Eco report (NEW)
- Lifting mode (NEW)
- Variable power control
- Attachment flow control
- Fuel efficiency
- Cycle time improvement
Convenience
- Deluxe operator`s seat
- Intelligent 8" touchscreen monitor
- Advanced audio system
- Innovative haptic control module
- Visibility and handle improvement (NEW)
- Key on init work mode (NEW)
Serviceability & Safety
- ECD (Engine Connected Diagnostics) (NEW)
- Auto safety lock (NEW)
- Electronic swing parking brake (NEW)
- Enhanced cabin visibility
- Easy access to DEF system
- Cab air filter access
- Upper-structure access
- Stacked cooler design
