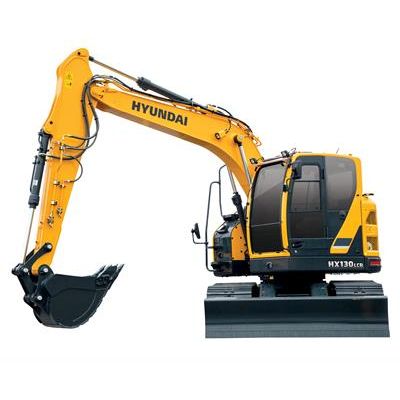

Hyundai ConstructionModel HX130LCR -Crawler Excavators

SHARE

Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. Adding to that success formula, the Hyundai HX series features eco-friendly, high-performance engines that meet Tier 4 Final emission requirements. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours. HX series is designed with the operator in mind. A key feature of the new operator’s cab in each HX series excavator is the convenient clustering of electronic controls and monitoring functions, resulting in improved operator accuracy and efficiency.

Most popular related searches
Net Power
  • 71 hp (53 kW) at 2,200 rpm
Operating Weight
  • 13,495 kg (29,750 lb)
Standard Bucket
  • 0.40 m3 (0.52 yd3)
  • ENGINE MODEL Perkins 854F
  • NET POWER 71 hp (53 kW) at 2,200 rpm
  • OPERATING WEIGHT 13,495 kg (29,750 lb)
  • BUCKET RANGE 0.30 m3 – 0.59 m3 - 0.39 yd3 – 0.77 yd3
  • SWING SPEED 12.6 rpm
  • TRAVEL SPEED (MPH) 5.5 km/hr (3.4 mph) / 3.3 km/hr (2.1 mph)
  • MAX. DIGGING DEPTH (FT/IN) 5,570 mm (18 ft 4 in)
  • MAX. DIGGING REACH 8,220 mm (27 ft 0 in)
  • TAIL SWING RADIUS (FT/IN) 1,500 mm (4 ft 11 in)
  • BUCKET BREAKOUT FORCE 11,312 kgf (24,938 lbf)
  • ARM CROWD FORCE 5,556 kgf (12,249 lbf)
Performance
  • Variable Power Control
  • Attachment Flow Control
  • Fuel Efficiency
  • Cycle Time Improvement
Convenience
  • Intelligent 8" Touchscreen Monitor
  • Bluetooth Audio with MP3, radio, hands-free
  • Auto climate control (AC/Heat)
  • Heated Air-suspension Seat
Serviceability
  • Battery Master Switch
  • 4 front work lights, 2 boom lights, 1 rear light
  • Hi-Mate - Telematics System
  • Auto diagnostic system
