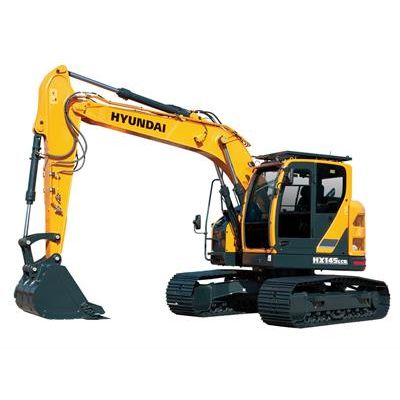

Hyundai Construction - Model HX145LCR -Crawler Excavators
Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. Adding to that success formula, the Hyundai HX series features eco-friendly, high-performance engines that meet Tier 4 Final emission requirements. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours. HX series is designed with the operator in mind. A key feature of the new operator’s cab in each HX series excavator is the convenient clustering of electronic controls and monitoring functions, resulting in improved operator accuracy and efficiency.
Most popular related searches
Performance
- Variable Power Control
- Attachment Flow Control
- Fuel Efficiency
- Cycle Time Improvement
Convenience
- Intelligent 8" Touchscreen Monitor
- Bluetooth Audio with MP3, radio, hands-free
- Auto climate control (AC/Heat)
- Heated Air-suspension Seat
Serviceability
- Battery Master Switch
- 4 front work lights, 2 boom lights, 1 rear light
- Hi-Mate - Telematics System
- Auto diagnostic system
- ENGINE MODEL: Perkins 1204F
- NET POWER: 116 hp (87 kW) at 1,950 rpm
- OPERATING WEIGHT: 15,160 kg (33,420 lbs)
- BUCKET RANGE: 0.23 m3 – 0.71 m3 - 0.30 yd3 – 0.93 yd3
- SWING SPEED: NA
- TRAVEL SPEED (MPH): NA
- MAX. DIGGING DEPTH (FT/IN): 5,990 mm (19 ft 8 in)
- MAX. DIGGING REACH: NA
- TAIL SWING RADIUS (FT/IN): 1,500 mm (4 ft 11 in)
- BUCKET BREAKOUT FORCE: 9 660 kgf (21,300 lbf)
- ARM CROWD FORCE: 6 190 kgf (13,640 lbf)
