Createch - Model Style E & F -Standard Self-Reversing Tapping Head Attachments
Styles 1E L& 2E now available with Pro-Quick™ Quick Change Style Spindles! Balanced heat-treated gear reversing mechanism minimizes strain and wear, Reverses at twice forward speed to increase productivity and avoid tap jamming, No tap overtravel … excellent for blind or shallow holes, Bronze bushings at wear points supporting the spindle from Shank to chuck, Extremely sensitive friction clutch engines conical surfaces of drive and reverse shells with smooth, "cushioned" action, allowing sensitive operator feel. Assures automatic tap perfection, One-piece TRU-GRIP or Pro-Quick spindle assures true alignment.
|

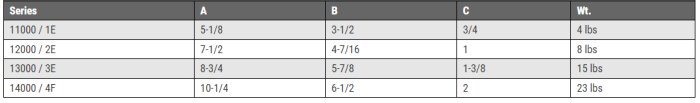

Series
|
Included
|
Net Weight
|
Max Speed
|
|
11000
|
2 wrenches
|
3 lbs.
|
3000
|
|
12000
|
2 wrenches
|
6 lbs.
|
2000
|
|
13000
|
2 wrenches
|
12 lbs.
|
1000
|
|
14000
|
2 wrenches
|
18 lbs.
|
800
|
Tapping Heads can be used in Horizontal position with slight change in oiler location.

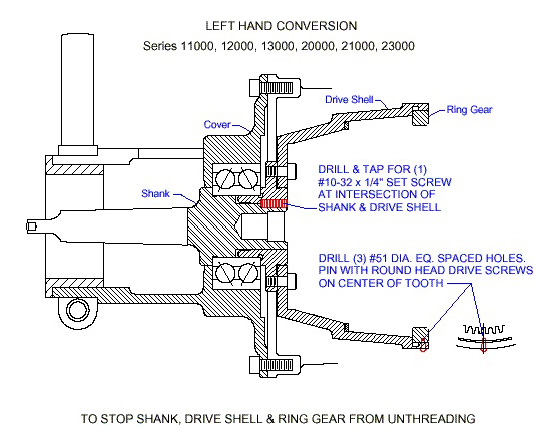

Factory can easily alter any Model for left-hand Tapping. To include left hand modification with new tapping attachment, include part #57550.
Note: Lead Screw Style Tappers must also use left hand lead screws.
- Mount directly to drill press quill for greater rigidity and accuracy
- These Models recommended for production runs
- Available for practically every drill press
- Enclosed drive for safety
|

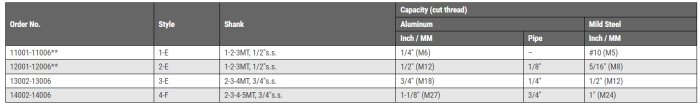

Style
|
Order No.
|
|
1-E
|
11035-11099**
|
|
2-E
|
12035-12099**
|
|
3-E
|
13035-13099
|
|
4-F
|
14063-14099
|
