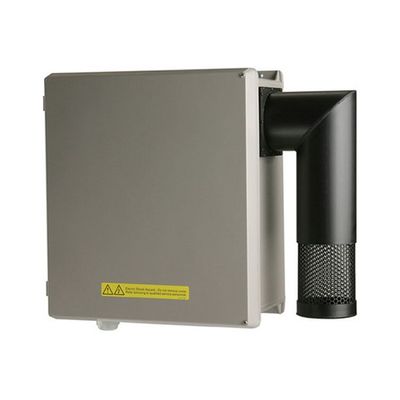

ENMET - Model CW Sentry 3G -Critical Infrastructure Monitor for CWA and TIC Threats
The CW Sentry 3G ambient air monitor detects CWA (Chemical Warfare Agents), nerve and blister and the following TICs (Toxic Industrial Chemicals) hydrogen cyanide, phosgene, halogens, hydride chemical threats in complex urban environments. It is a fully automated system ideally suited for critical infrastructure protection and easily integrated into building control software systems.
The CW Sentry 3G is a third-generation design which has been tested and evaluated by the US Government as a front-line tool for consequence management protection. The CW Sentry 3G offers a compelling combination of trace level CWA detection, best in class agent selectivity and cost-effective sustainment.
- Highly selectivity
- Trace level detection
- CWAs
- TICs
- Fully automated operation
- Self diagnostics and system verification
- Low maintenance
- Weight: 40 Pounds or 18.2Kg
- Dimensions: 24.75×19.5×9.in or 62.9×49.5×24.2cm
- Sensor Technologies:
- Surface Acoustic Wave Array
- Electrochemical: Cell Array
- Analysis Time:
- SAW: 30 Seconds
- Electrochemical: 5 seconds
- Warm Up Time: Less than 5 minutes
- CWA Alarm Thresholds: Adjustable
- CW Detection Thresholds:
- Nerve Agents (Meets the ECt50 mild exposure dose level)1
- Blister Agents (Meets the ECt50 mild exposure dose level)1
- TIC Alarm:
- Hydrogen Cyanide 5.0ppm
- Phosgene 0.3ppm
- Hydride 0.5ppm
- Halogen 10.0ppm
- Data Output: RS232c serial; Ethernet and Fiber Optics Ports (Optional)
- Operating Temperature: 04° to 122°F or -20° to +50°C
- Operating Humidity: 0-95% non condensing
- Power Supply: 90-240VAc 50/60Hz (60 Watts)
- Warranty: One year Parts and Labor
- CW Sentry 3G Product Configurations:
- M1200010 Detects Nerve and Blister Agents
- M1200030 Detects Nerve and Blister Agents & Toxic
- Industrial Chemicals (Hydrogen Cyanide, Phosgene, Halogen and Hydride Gases)
- 1 Somani, Satu M., and A. Romano. “Pg 415.” Chemical Warfare Agents Toxicity at Low Levels. Boca Raton: CRC, 2001.
Nerve Agents (Meets the ECt50 mild exposure dose level)1
- GF
- VX
Blister Agents (Meets the ECt50 mild exposure dose level)1
Toxic Industrial Chemicals:
- Hydrogen Cyanide
- Phosgene
- Hydride
- Halogen
1 Somani Satu M. and A. Romano. “Pg 415.” Chemical Warfare Agents Toxicity at Low Levels. Boca Raton: CRC 2001.
