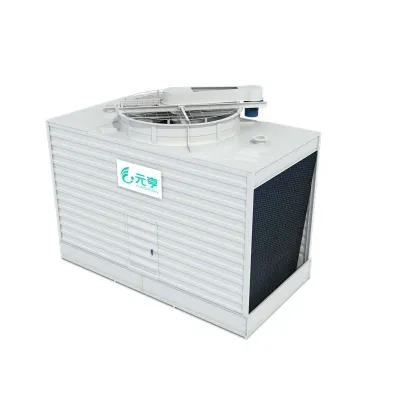

YHCooling - Model YHW Series -Cross Flow Cooling Tower

Overview of YHW cross flow cooling tower

YHW as a new generation of Yuanheng's cross-flow cooling tower, adopts a new design concept, through the use of advanced production technology of automatic assembly line, perfect testing methods and quality control procedures, with reliable, efficient, energy saving, water saving, low noise, compact structure, simple on-site assembly in one.

Characteristics of YHW series cooling tower

High Efficiency Film Fill:

• Constructed of inert polyvinyl chloride (PVC)
• Resistant to rot or decay
• Capable of water temperatures up to 120ºF or 48.89℃
• Integrated with Drift Eliminators and Air Inlet Louver
• Reduces water loss during wet operation
• Honeycombed edges design that minimizes splash-out

Superior Distribution System：

• Steel covers in easy-to-handle sections
• Integral weir dams to accommodate at least 50% design flow
• Large orifice, non-clog nozzles in triangle arrangement
• Fastened basin seams for leak-free operation
• Hot water basin with Z700 upper section
• Available in Type 304 or Type 316 Stainless Steel
• Fastened basin seams for leak-free operation

Sound Reducing Options：

Available with multiple equipment options to reduce the overall sound generated from the side or top of the unit.  Options include:

• Variable Speed Variable Frequency Motor
• Low Sound Fan
• Super Low Sound Fan
• Add Air Inlet and Exhaust Muffler
