Brentwood ThermaCross -Â Cross-Fluted Fills

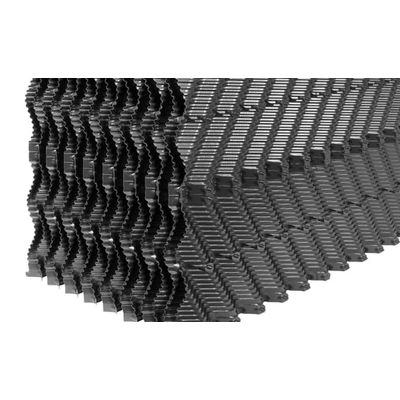

ThermaCross is a drop-in upgrade for standard 19mm-spaced, cross-fluted fills. When engineering the product, Brentwood developed its patented MicroBoost™ design to maximize the air-water interface for increased thermal capacity and utilized a more vertical macrostructure for improved fouling resistance. These design features enable ThermaCross to perform up to 7% better than standard 19mm-spaced products, even matching the performance of 12mm-spaced high efficiency fills at higher fill heights.
- Balances thermal performance and pressure drop better than existing 19mm-spaced products
- MicroBoost design enables versatility for use in any clean water application, such as HVAC, district cooling, and treated industrial processes
- Available Mechanically Assembled or solvent welded
Highly Efficient

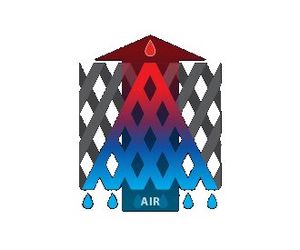

Cross-fluted fills offer the highest level of efficiency of all film fill designs, improving heat transfer and maximizing overall tower performance.

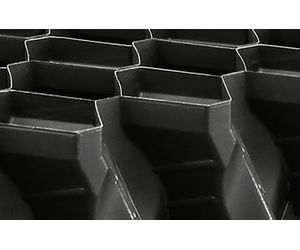

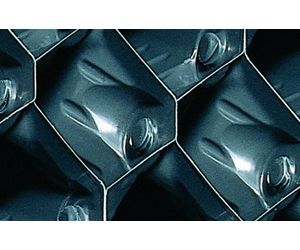

The engineered microstructure incorporated into cross-fluted fills enhances water distribution and thermal mixing.
Brentwood`s cross-fluted fills feature bonded edges for added media strength and durability.

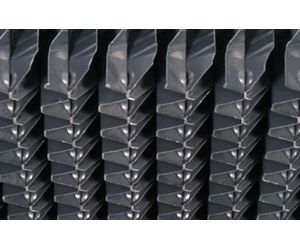

Beveled tips are incorporated into the cross-fluted design to promote drainage at the fill pack interfaces.
Brentwood`s patented Mechanical Assembly technology permanently assembles fill packs without glue by crimping the male and female attachment tabs molded into the individual sheets.
