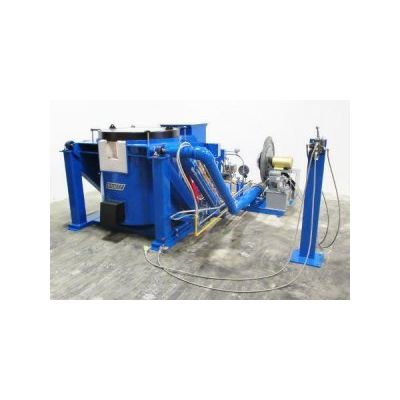

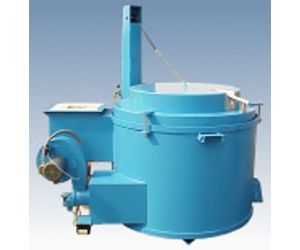

Crucible Furnaces
Baker Furnace Inc. has been designing, engineering, and manufacturing Crucible Furnaces since 1980. Baker Furnace has a complete line of Crucible Furnaces to melt Silver, Gold, Brass, Aluminum, Lead, and Zinc. Our Crucible Furnaces can be used for a variety of applications including Precious Metal Melting, Mining smelting of ore concentrates, Brass Melting, School Foundries, Art Bronze Casting Foundries, and any other non-ferrous melting application.
Baker Furnace`s Crucible Furnaces are equipped with fully automatic Combustion Systems that are spark ignited and utilize FM approved flame supervision systems. They are built for rugged Industrial service and are shipped in a turnkey condition ready for installation and immediate operation.
Our Crucible Furnaces include a "packaged" burner assembly that bolts easily to the furnace. The combustion blower and burner are combined into one compact unit. RA furnaces are easy to maintain and include flame safety, spark ignition and an FM approved main gas valve as standard equipment.
- Features:
- FM approved Main gas valve
- Pneumatic crucible cover
- 4 Part insulated refractory lining
- Quiet operation (70 dba or less)
- Control panel with Digital temperature control
- FM approved flame safety device
- Spark ignited and piloted
- Fully automatic
- Operates on 115/230 Volt 1 ph. or 230/460 Volt 3 ph.
- Voltage - 115/230 Volt 1 ph. or 230/460 Volt 3 ph
- Fuel Types - Natural Gas or Propane
- Inlet Pressure - 6" or 8" Water Column
- Inlet Pipe Size -1 1/2" N.P.T.
- Melt Rate (Cold Start) - 1/3 Capacity/hour
- Melt Rate (50% Heel) -1/2 Capacity/hour
- Maximum Temperature - 1800° F
- Temperature Controls - Microprocessor based digital-Type K
- Refractory Lining - 6 1/2" thick - 4 separate insulating materials
- Pneumatics - Clear air at 80-100 PSI required
