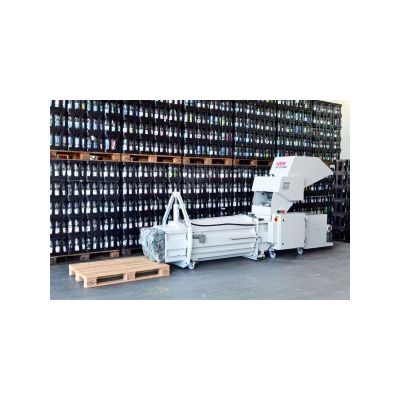

HSM - Model PET CP 4988 -Crusher Baler Combination
FromHSM GmbH Co. KG
The efficient PET recycling system reduces the volume of empty PET bottles by up to 90% in one cycle and produces compact raw material bales. A dosing shaft ensures that the bottles are drawn in securely and achieves a throughput capacity of up to 4000 (1 litre) bottles every hour. The drainage system discharges all residual fluid before pressing. With a pressing power of 11 tonnes, the downstream baling press compresses the crushed bottles into raw material bales with a weight of up to 100 kg.
Most popular related searches
crusher baler
baler combination
PET bottle
recycling system
PET recycling
baling press
drainage system
plastic bottle
baler
roller crusher
- Efficient PET recycling system to reduce the volume of empty PET bottles by up to 90 % and produce compact raw material bales.
- Low space requirement.
- Manual and automatic filling possible.
- Crusher rollers made of specially hardened and ground steel,impervious and sturdy – for a long service life.
- Scraper system removes the compressed plastic bottles reliably from the crusher rollers.
- Dosing shaft with several paddles ensures that the PET bottles are reliably fed to the rollers.
- Automatic photoelectric control of the pressing process.
- Manual, 3-fold strapping with continuous polyester strap.
- Display to indicate “bale ready”
- Article Number: 000000000006577334
- EAN: 4026631060127
- Pressing power: 110 kN
- Driving power: 2.2 kW
- Voltage: 400 V
- Frequency: 50 Hz
- Width x Height x Length x Depth: 950 x 3691 x 3691 x 1800 mm
- Weight: 1150 kg
