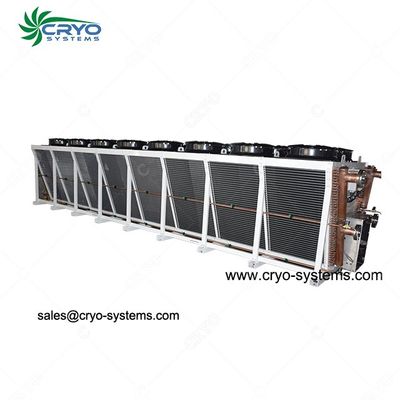

Cryo - Dry Air Cooler
Dry cooler is a heat exchanger with fin tubes, and it can direct cool the medium by air without water. Flat shape and V shape are the most popular types. Dry coolers were designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. In order for dry cooler to work, the air temperature needs to be cooler than water in the system. To cool the system liquid, hot process liquid flows through the dry cooler tubes. The liquid is then cooled by the relatively cold ambient air that is forced through the coil. The advantages are low maintenance cost, safe and reliable operation, long service life, and free of scaling.
Fan/ Low noise axial fans
Adopting a high-quality motor, the reasonable gap with the wind vane, guide ring, and hyperbolic designed ducting achieve maximum efficiency of the fan
Copper Pipe
Efficient use of multiple tooth inner thread pipe, Rate of more than 99.9%, increasing of the innertube surface area and improving the efficiency of heat transfer
The Pipeline design
The heat exchanger is adopted directly back to the oil and counter exchanger area, improving the heat transfer efficiency and counter-current, to avoid the accumulation of oil and make full use of ensuring the superheat temperature of the heat exchanger.
Casing
Using3003 aluminum alloy shell or DC51-D+180g, spraying paint. For outdoor, and after high-temperature curing, the material has
high strength, and strong corrosion-resistance, standard color is RAL9010.
- Shape with flexible and changeable, drawing blowing. Forward airflow, airflow up, airflow down precision meet the actual needs of different occasions, the cold quantity to the location of the actual needs, improve efficiency.
- Finned length up to 12m, Finned height up to 2.7m
- Built-in ambient temperature and humidity sensors, as well as water temperature and pressure sensors
- Details of the wet curtain, the standard configuration of water pump, water inlet valve, automatic drain valve, and liquid level control
- Modular assembly design, vertical and horizontal installation on-site adjustment
- EC axial fan anti-corrosion application treatment: standard salt spray 720 hours
FRAME STRUCTURE
Modular structure, use the high quality of zinc magnesium-aluminum material (304 or 316 stainless steel for option)
strong corrosion-resistance
Heat- exchange Tube
Strong copper pipe, good bending, and welding.
Fins
Aluminium fins, Hydrophilic Al Fin, etc optional
Fans
High quality axial fan, Low noise design
