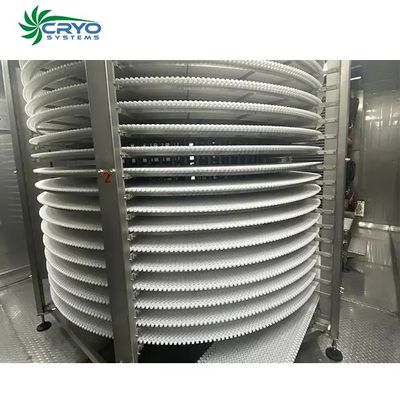

Cryo - Spiral Freezer

SHARE
IQF is an abbreviation for “individually quick frozen”, a process that freezes food rapidly so there is minimal damage to the cellular structure of the food.
Most popular related searches
air duct system
duct system
water drain
air duct
water saving
drain water
air cleaning

1. Special Air Curtain
2. Spiral Belting
3. Stainless steel Fan
4. Belt Tension Device
5. High-Quality Evaporator
6. Auto Washing System
7. CIP auto washing system
8. Patented Airflow System
9. Advanced Overturn-proof
10. Top Class S. Steel Mesh Belt

We design spiral equipment that is built to your specifications and space. A variety of design options, such as a double drum or single drum, are available to ensure that your machining line is operating at optimum performance.

1. Hygienic Interior Processing Space

  • World patent anterior driving device avoiding oil pollution
  • Evaporator with epoxy fin avoiding powder of alumina
  • Water drain through the integral floor, No dust left inside
  • Motor Bearings inside: No oil pollution
  • Automatic cleaning system: High efficiency

2. Quicker Freezing Lower Moisture-lost

  • Patented airflow system to achieve quicker freezing & lower moisture-lost
  • Different fin space in the evaporator to enhance heat exchange efficiency
  • Closed-circle Air-Duct System to ensure low motor power and save great running cost3. Saving Running Cost
  • Lower installed motor power
  • Patented airflow system reduces the retention time
  • Save defrost water due to Epoxy fin

3. Saving Running Cost

  • Lower installed motor power
  • Patented airflow system reduces the retention time
  • Save defrost water due to Epoxy fin

4. Credible and Stable Running

  • Advanced technology to ensure stable running
  • World-class parts controller to ensure credible running
  • Strict system control on fabrication and assembly to ensure accuracy and reliability of the machine
  • Factory test before delivery to ensure 100%pass
  • Multi-alarm system for abnormal
  • Perfect after-sales service

5. Easy Operation

  • Easy operation and Stability in the Controlling system. Mitsubishi PLC( Chinese/English) in with the communication port, The
  • the controlling system, connect refrigeration system to realize automatic running
  • PLC control automatically and accurately system running Controlling panel with LCD realize the easy and quick operation
  • User can set auto running according to different product
  • Belt speed will be controlled by the inverter when running. It’s suitable for various products
  • Air blowing after Water cleaning to ensure belt clean
  • Display the information of abnormal when a malfunctioning
