Cryo - Tunnel Freezer

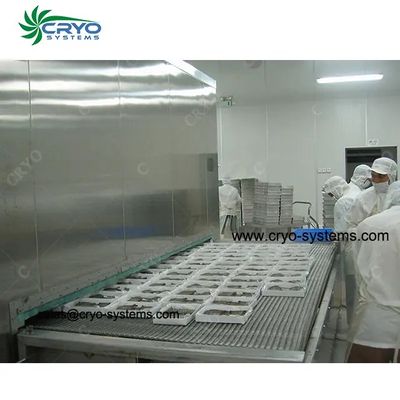

IQF is an abbreviation for “individually quick frozen”, a process that freezes food rapidly so there is minimal damage to the cellular structure of the food. A tunnel freezer is a class of processing freezer systems where the product usually travels horizontally through a long enclosed space (freezing tunnel) and cold air is circulated upward through the product.
Most popular related searches
- The S Belt
- Low noise S Fan
- High-quality Runner
- SS Fan
- Belt Tension Device
- High-Quality Evaporator
- Advanced Deflection Proof
- High-density insulation panel
- Safe and reliable equipment configuration
- Multiple energy-saving designs
- High-quality evaporator
- Top quality insulated panel
1. Plate-belt tunnel freezers Features
- Imported strong Intensity stainless steel plate
- High stick-on plastic strips imported from Japan keep the belt normal running.
- Belt running inside to avoid outside pollution and cold loss
2. Mesh-belt tunnel freezer Features
- Special patent driving ensures belt smooth running.
- No distortion while loading based on high-quality SS spring for the belt.
- Vide belt design for wide product scope, strong bearing capacity.
- Keep the belt correct running by air pump while occurs deflective running.
3. High-efficiency plate/mesh-belt tunnel freezer Features
- Quick freezing, 200g/ fillet passing time is 17 minutes.
- With Lower moisture-lost.
- The Optimize airflow system design, add nozzles on both sides of the belt to improve heat exchange efficiency.
- The Two belts are installed in the same freezer where has a partition to save room.
- Parts inside without any oil and outside driving devices keep oil pollution from product processing.
