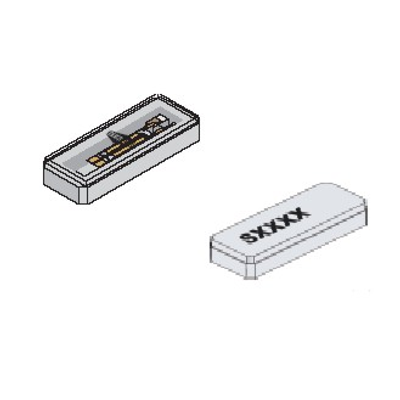

Euroquartz - Model CX11LHG AT -Crystal

SHARE

CX11LHG crystals are high performance devices designed to survive extreme shock and high vibration environments. Low acceleration sensitivity and low ageing performance are coupled with tight calibration and temperature tolerances. This is a Statek product designed and manufactured by Statek Inc, USA. Contact Euroquartz Sales or Technical for details

Most popular related searches
shock and vibration
temperature calibrator
  • CH11LHG crystals are designed for extreme environments.
  • This crystal is ideal for use where extreme mechanical shock occurs.
  • Calibration Tolerance 2: ±100 to ±30ppm
  • Load Capacitance: 10pF
  • equency-Temperature Stability 2,3: Commercial: ±50ppm to ±10ppm Industrial: ±50ppm to ±20ppm Military: ±100ppm to ±30ppm
  • Ageing: ±5ppm maximum (first year)
  • Shock, survival: <75,000g, 0.3ms, ½ sinewave
  • Vibration, survival 4: 20g, 10~2000Hz swept sinewave
  • Operating Temperature Range: -10°C to +70°C (Commercial) -40°C to +85°C (Industrial) -55° to +125°C (Military)
  • Storage Temperature Range: -55°C to +125°C
  • Maximum Process Temperature: 260°C for 20 seconds maximum
