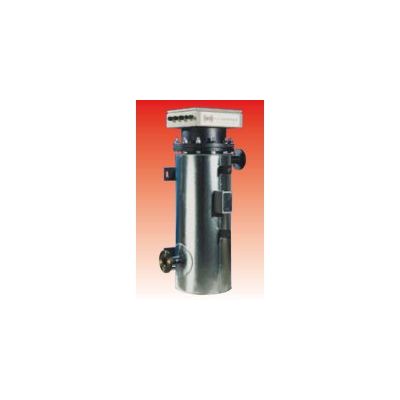

CSN - Model 97 D Series -Flow Heaters

• CSN flow heaters are particularly suitable for heating water, caustic solutions, heat transfer liquids, heavy oil,
• flowing air, resting air, non-combustible gases or vapors.

• The optimal structural design and heating surface load in connection with the film temperature is realized with the help of computer based design programs.

CSN flow heaters are essentially made up of:
CSN flange heating elements with connection box of steel sheets or special steel. Terminal clamps as well as optional temperature control elements are installed. The cooling zone between flange and connection box is chosen to prevent overheating of the components in the connection box. The electrical protection type of the connection box with metallic metric screwed cable glands corresponds to IP 54. IP 65 can be supplied upon request.Position and dimensions of the heater housing, made of steel, boilerplate or special steel, intake and outlet flanges, are adjusted according to the respective requirements. We supply seals according to requirements or per customer request.

If requested, the heaters can be equipped with the following options:

• Support bases with fixed or friction bearings
• Mounting or suspension straps
• Heat insulation
• Supply pump
• Optimization of the velocity of flow through additionally installed elements
• Fittings
• Contactor or thyristor control
