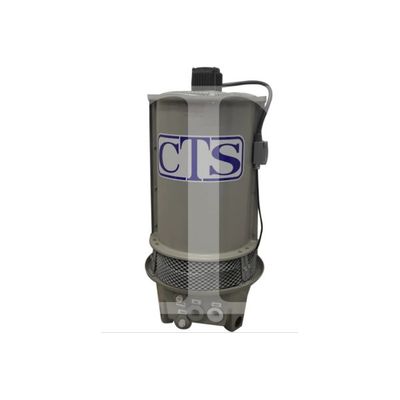

CTS - Model CCT-237-3 -Cooling Tower
3 Nominal Tons based on design of 95/85/75 @ 9 GPM; Equipped with a dual on/off switch - one for the motor and one for the sump pump. Wired and tested to low voltage, single phase electricity. Common uses include small process cooling, machinery cooling, and pond cooling applications.
Most popular related searches
- Fan Motor: 1/6 HP, 110/220V, 1PH, 60Hz
- *Electrical hookups are inside the junction box located on fan motor
- CCT-237 Sump Pump: 1/3HP, 115V/1PH/60Hz (17` TDH @ 9 GPM)
- Cooling Capacity: 45,000 BTU/hr
- Air Volume: 870 CFM
- Water Inlet: 1.5"
- Water Outlet: 1.5"
- Tower Diameter: 27 1/8"
- Tower Height: 50"
- Operating Weight: 161 lbs.
- Dry Weight: 62 lbs
- Shipping Weight: 130 lbs.
- Shipping Dimensions: 36 x 36 x 61
