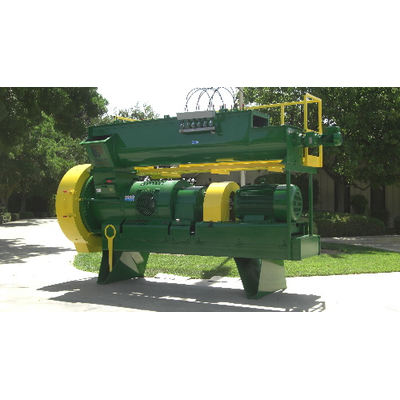

Warren & Baerg - Model 300 (300-W) -Cuber
Production: 6 to 8 tons per hour. Material: Mixed Paper/FBF, Cardboard, MSW (dRDF), Cardboard Sludge, Paper Sludge, Planer Shavings, Sander Dust. Note: Production depends on how clean the material is prior to cubing.
Most popular related searches
- Single and dual pass, sizes and dwell times adjusted
- Minimizes fines and cube damage
- Reduces physical space required for curing and storing cubes
- Reduces labor and storage costs
- Length: ranges from 18 to 90 feet (5.5 m to 27.4 m) Single or Dual Pass, other lengths available
- Width: ranges from 6 to 10 feet (1.8 m to 3.1 m)
- Height: 12 feet (3.7 m)
- Surge Capacity: ranges from 224 to 2600 cubic feet (6.3 to 73.6 cubic meters) in accordance to different widths and lengths
- Dwell Time: according to size, dwell time will vary from 20 to 60 minutes
- Floor: 1/2" (12.7 mm) square bars spaced 1/2" (12.7 mm) apart forms the floor. Cubes ride on 1/2" (12.7 mm) square bars and are moved through by drag chains. 1/3 hp (0.25 kw) drive with A/C inverter for speed control. OR flat wire belt rides on 3" diameter rollers on 12" (30.5 cm) centers.
- Cubes ride on a flat wire belt driven with sprockets on 6" centers. 1/3 hp (0.25 kw) drive with A/C inverter speed control.
- Cube Spreader: Mechanical cube spreader and manual
- Fines Returning System: Fines moved to ends to the pneumatic fines pickup system
- Fines Eliminating Conveyor: Drag chain over 1/2" (12.7 mm) square bars on 1/2" (12.7 mm) spacing for fines to fall through to pneumatic fines pickup, 3 hp (2.2 kw) drive OR Rod type chain conveyor to eliminate fines, 3 hp (2.2 kw) drive.
- Blowers: Axial type blower, type and size and quantity will vary according to size of cooler. Approximately 50 - 70 CFM of air is used per cubic foot of cubes
- Gear Motors: All manufactured per customer’s choice
