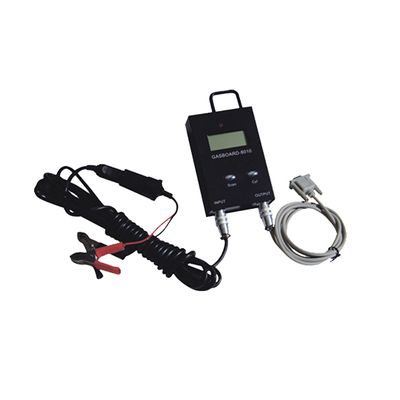

Cubic Instruments - Model Gasboard-8010 -Engine RPM Sensor Based on Cigar Lighter
Gasboard—8010 can work independently or apply in combination with opacity meter, exhaust gas analyzer or others. It adopts advanced DSP technology together with signal spectrum analysis approach to detect rpm. This instrument is high-precision, reliable, easy to install. It doesn`t need vibration sensor or pincers for engine cylinder line. Only by connecting to power source system can it measure engine rpm. Cigar lighter RPM sensor is not only applicable to gasoline vehicle but also applicable to diesel vehicle.
• Used for RPM measurement of gasoline, diesel, and natural gas engines
• Directly connected to cigar lighter or battery to measure its RPM without any sensor.
• RS-232 interface and LCD display
• Standard signal interface includes TTL or RS232
• Standard accessories kit
- Front panel：
- Button A： New Search
- Button B： change cylinder number
- Interfaces：
- Standard accessories： clamp, cigar lighter power supply cable
- Optional accessories： RS232 cable
