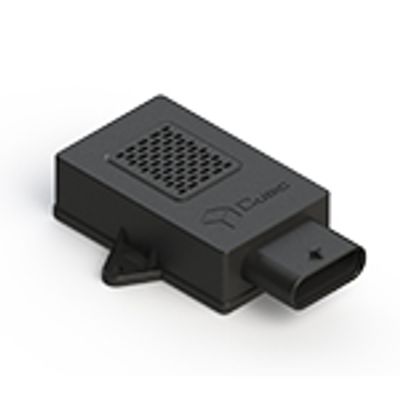

Cubic - Model AM4205 Series -Cubic NDIR A2L Refrigerant Gas Sensor Detect Refrigerant Leak R32, R454A, R454B, R454C, R290
A2L Refrigerant Gas Sensor-AM4205 Series Cubic NDIR refrigerant gas sensor AM4205 mainly targets at A2L gas, such as R32, R454A, R454B, R454C, or A3 hydrocarbon like propane R290. Based on NDIR (Non-Dispersive Infrared) technology, AM4205 could detect and monitor refrigerant leak then provide early warning, it has advantages of fast response, high accuracy and good long-term stability. The sensor has been developed with standard gas and is efficiently calibrated in the factory by Cubic own calibration technology. The sensing solutions can not only output an alert, but also directly participate in mitigation or shut-down procedures. AM4205 sensor is widely used for detecting or monitoring refrigerant leakage in these fields, such as commercial /transport /industrial refrigeration, automotive air conditioning, commercial air conditioning, heat pumps, etc.- Dual Beam NDIR Technology
- High Resolution
- Up to 0~100% LFL Range
- Digital output of gas concentration
- Factory calibrated
- Internal temperature sensor
- Built-in heater to avoid condensation and frost
- Fast response, long lifetime
- Faults Diagnostics & Error Generation
- OEM/ODM sensor detector is available
- IEC60335-2-40 & UL 60335-2-40 certified
- Principle: NDIR
- Measurement range: 0~50%LFL
- Resolution: 1%LFL
- Accuracy: ±3.75%LFL
- Response Tme: ＜30s
- Output: UART /0.8~4V（Default） PWM（Customized）
- Woking Environment: -30～60℃；0～95%RH(non-condensing)
- Storage Environment: -30～70℃；0～95%RH(non-condensing)
- Power Voltage: 5±0.1V DC
- Average Current: ≤150mA
- Peak Current: ＜300mA
- IP Grade: IP54
Refrigerant Sensor Solutions are OEM based.
The above features and specifications are one of the typical versions. OEM/ODM refrigerant gas leakage detectors are available.
Automotive Air Conditioner
Healthy and good air quality in the car is becoming one of the essential standards for cars.Dust, bacteria, volatile gases and metal particles that are not visible in the air of the car are all factor
Rail Transport
To monitor automotive air quality, Cubic developed various kinds of automotive laser particle sensors, which are OEM basis for customers` demand.

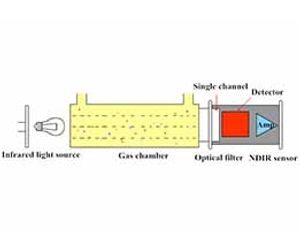

NDIR Technology
