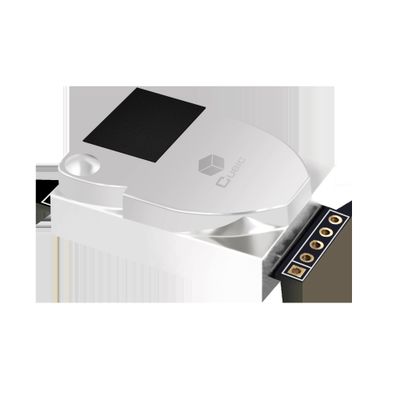

Cubic - Model CM1106HA-NS -High Accuracy NDIR CO2 Sensor

FromCubic Sensor and Instrument Co., Ltd

SHARE

High accuracy with ±75ppm@400-2500ppm to meet newest AHSRAE 62.1-2022 standard for demand control ventilation(DCV) applications, CO2 sensor CM1106HA-NS can be used to detect CO2 concentration of indoor air by adopting advanced non-dispersive infrared technology (NDIR). With auto-calibration, no need of maintaince. It is widely used in ventilation system, HVAC, air conditioner, air purifier, IAQ monitor, agriculture, plant cultivation and cold-chain, etc.

Most popular related searches

demand controlled ventilation

NDIR technology

NDIR hydrocarbons

air quality monitoring

NDIR CO2 sensor

controlled ventilation

air conditioner

indoor air quality monitoring

NDIR technology with independent intellectual property
Temperature calibration within whole measurement range
Long life span, auto-calibration, maintenance free
Small size and compact structure, easy to install

Measurement range: PWM: 0-2000ppm;cUART/ I²C: 0-10000ppm (Note 1)
Working temperature: -10°C ~ 50°C
Working humidity: 0-95%RH (non-condensing)
Storage temperature: -30°C ~ 70°C
Storage humidity: 0-95%RH (non-condensing)
Accuracy: ±75ppm@400-2500ppm, normal temperature and pressure. (Note 2 and 3)
Sampling frequency: 1s
Response time: ≤ 30s
Power supply: DC 4.5V~5.5V
Ripple wave: <50mV
Working current: <50mA
Dimensions: 33x19.7x8.9mm (pin is not included)
Weight: 5g
Signal output: UART_TTL /I²C/PWM
Lifespan: ≥15 years
Maintenance: Maintenance-free for normal indoor application with Auto-calibration

Demand Control Ventilation (DCV)
CO2 Controller
Fresh Air System
Air Quality Monitor
IAQ Application
