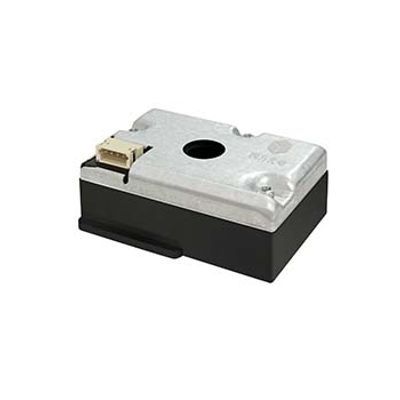

Cubic - Model PM1006K - LED Particle Sensor
From Particulate Matter Sensor
LED particle sensor PM1006K adopts principle of optical sensing method to detect the variation trend of particle (size between 0.3μm~10μm) concentration in the air. An infrared light emitting diode and an optoelectronic sensor are optically arranged inside, dust concentration is measured by detecting the intensity of scattered light,and output real time concentration via mathematical algorithm and scientific calibration.
Features
- Built-in MCU, directly output particle mass concentration (μg/m³)
- Optimized lens design, the sensor can identify 0.3μm particle
- High accuracy, high stability, quick response
- Temperature compensation with the whole measurement range
- Auto lens dust deposition correction
- Compact structure, light weight and easy for installation
Specifications
- Measured particle size: 0.3μm~10μm
- Measurement range: 0~1000μg/m³
- Accuracy: ±20μg/m³ or ±20% of reading(@voltage 5.0V, 25±2℃, 50±10%RH)
- Response time: 8s
- Working condition: -20℃~75℃, 0~95%RH(non-condensing)
- Storage condition: -40℃~85℃, 0~95%RH(non-condensing)
- Power supply: DC 5V±0.25V
- Ripple wave: <50mV
- Working current: ≤30mA
- Signal output: UART_TTL, PWM
- Dimensions: W46.2*H34.1*D18(mm)
- Weight: 17.4g
Applications
- Air Purifier
- Air Quality Monitor
