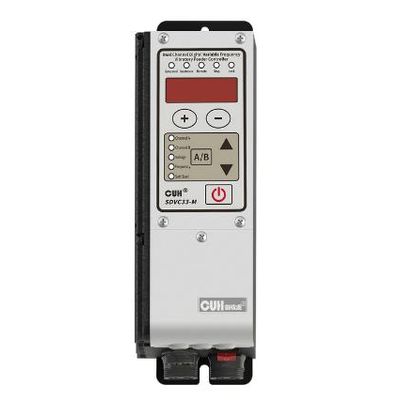

CUH - Model SDVC33-M (3.5A) -Dual Channel Digital Variable Frequency Vibratory Feeder Controller

Its special features include:

• Dual-channel power output that can distribute current arbitrarily, supports setting the overcurrent protection current of each channel.
• Dual-channel working mode can choose frequency tracking, voltage tracking or frequency-voltage dual tracking.
• During frequency tracking, the phase difference between the two outputs can be set from -180°~180°.
• The output frequency range covers 5Hz to 999.9Hz with 0.1Hz accuracy.
• Brake function to quickly stop the vibratory feeder by shifting the current phaseby 180° during the soft-stop process.
• Intelligent photoelectric ports support photo-sensors, NPN or PNP switch sensors.
• Overflow control port supports NPN, PNP or auto-adaptive type.
• Control output port supports NPN, PNP or push-pull output mode.
• The remote speed control port can be cross-selected, allowing one potentiometerto control two outputs at the same time.
• The remote control coefficient function can magnify or reduce the control effectof the remote control voltage by 1 times.
• LED display brightness adjustment function supports 32-level brightnessadjustment.
• User parameter save and restore function, allowing users to set parameters andsave them in the user group for easy recovery.
• Factory reset function supports sub-channel A/B recovery or whole controllerrecovery.
• Complete protection functions include: main output short-circuit protection,overcurrent protection, overheating or overcooling protection, undervoltage/overvoltage protection, control output short-circuit protection, 24V output short-circuitprotection, speed regulation 5V output short-circuit protection.

• Dimensions:94.5*61.8*190(L*W*H,mm)
