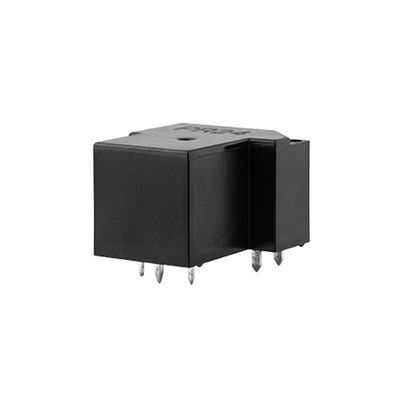

CUI Devices - Model PR24-24V-900-1C -Power Relay
FromCUI Devices
27.4 x 31.8 x 20 mm, 24 V, 20 A, SPDT (1 Form C), Power Relay.
- Relay Type : Power
- Coil Voltage (V) : 24
- Nominal Coil Power (mW) : 900
- Contact Form : SPDT (1 Form C)
- Contact Rating : 40 A @ 250 VAC/24 VDC
- Contact Resistance (mΩ) : 100
- Max Switching Voltage (VAC) : 250
- Max Switching Voltage (VDC) : 28
- Max Switching Current (A) : 40
- Mounting Style : Through Hole
- Termination : Pc Pins
- Contact Material : Ag Alloy
- Operating Temp Range (°C) : -40 ~ 85
- Dimensions LxWxH (mm) : 27.4 x 31.8 x 20
