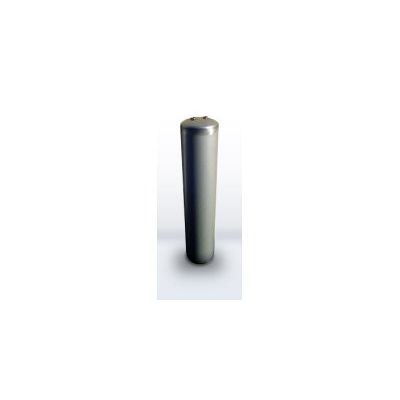

US Resin - Culligan Style Tanks

Tanks are made of 304-2B Stainless Steel. Heliarc & Short Arc Welding processes used with 316 stainless wire. The top and bottom heads are 12 gauge (.105) thicknesses. The side shells are 9 inches in diameter &14 gauge (.078) thickness. The top head has two V* female pipe fittings 3 inches apart on center. The bottom head is inverted allowing for use on hook type trucks. These tanks have been hydrostatically tested at approximately 3 times standard household pressure. The overall height is 44 1/8 inches
