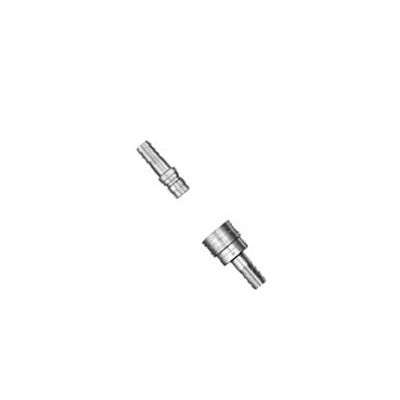

Cupla - Model TSP -Medium Pressure Low Pressure Quick Connect Couplings

• Valveless construction drastically saves pressure loss and achieves high flow rate.
• Suitable for high viscosity fluids (such as grease).
• Available in various standard body materials, sizes and end configurations to cope with diversified applications and operating situations.

Note: See the pages of Seal Material Selection Table at the end of this catalog for the suitability of seal materials to fluids.

• Applicable Fluids: Air / Water / Hydraulic Oil / Chemicals / Gas
• Working Pressure: 15 ~ 75 bar
• Valve Structure: Straight through
• Body Material: Brass / Stainless steel / Steel
• Seal Material: NBR / FKM / EPDM
• Size: 1/8" / 1/4" / 3/8" / 1/2" / 3/4" / 1" / 1 1/4" / 1 1/2" / 2"
