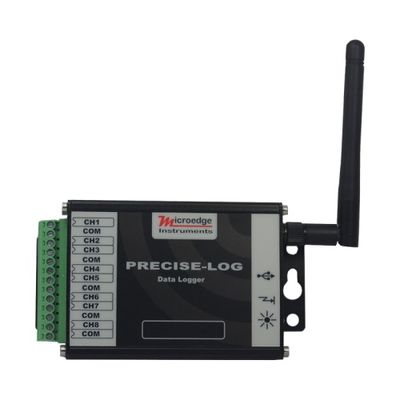

Microedge Precise-Log - Model PL-CW -Current Data Logger
PL-CW is an 8-channel, battery powered, standalone and WIFI-enabled current data logger. The logger records eight external current sources and saves data in 8-MB memory. Its aluminum enclosure makes it excellent in the harshest industrial environment. Embedded WIFI module allows remote data monitoring and downloading. The data logger can be enabled by Modbus TCP protocol and become a Modbus TCP server. 16-bit ADC makes it well suited for science and laboratory applications where precise and accurate measurements are critical. Simply power the logger in WIFI covered area and access it from your computer for configuration, downloading, graph viewing and more.
Most popular related searches
- 16-bit analog-to-digital converter
- 8 megabyte memory size
- Both USB and WIFI comm. interfaces with baud rate of 115200 bps
- Programmable input ranges (20 mA, 50 mA)
- Over 10 years of battery life
- Powerful software for configuration, downloading, plotting, analysis and alarm reporting
- Support Modbus TCP protocol
- Wide sampling interval selections (one second to 12 hours)
- Rugged aluminum enclosure
