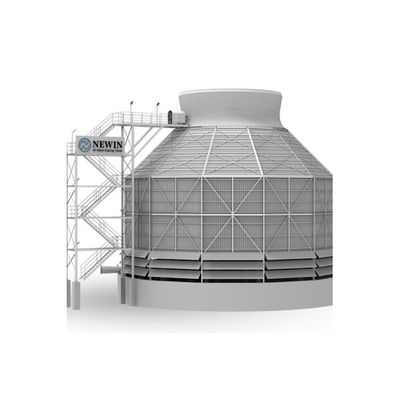

Newin - Model NTG-W Series -Custom Large Industrial Cooling Tower

• Cooling tower specialized fan made of F.R.P. The windward side of the fan blade was protected with stainless steel,  makes FRP fan to be stronger and higher corrosion resistant, more than 25year’s service life.
• IE3 motor (protection class: IP55, Insulation class: F class), adding inner heating device ( optional) with 220V power source. Gear box transmission efficiency: 95%, serve factor 2.0.
• Envenly hot water distribution via the non-block type Three Splased Nozzles that installated on distribution pipes.
• NSD series blade type dirft eliminators are installated above the water distribution system, high water-absorption, low airflow resistant.
• Heat exchange layer adopts HAN series PVC infill which is designed for normal industrial dirty water, high thermal performance and non-clogging design.

• Galvanized steel framwork with F.R.P panel casing, corrosion resistant and high strength constructure.
• Molded SMC fan stack ( made of F.R.P panel) with hyper bolic structure, low win resistance, low energy consumption and easy to install.
• FRP panel are widely use in modern cooling tower manufacturing, has good heat insolation performance and withstand sunlight and anti-aging. It can works with any Acid or Alkaline water or chemical fluid.
• Platform and walkway special designed for the convenient maintenance of cooling tower.

Air Inlet Double Side Louvers
At air inlet place, installed two side louvers, the inner side louvers was design for prevent the water splash out from cooling tower. Outer side louver was for prevent the sands storm and other items goes into cooling tower.

Anti-freezing Solution
In cold weather, cooling tower fills may appear ice-hanging phenomenon, which affect the operating efficiency of the cooling tower. In order to prevent this phenomenon, anti-freeze tube are installed around the bottom of the cooling tower. The hot water will be sprayed into cold water basin via the tube when the temp. is lower than 5?,so that to avoid cold wind entering , effectively prevent the occurrence of fills icing and ensure the normal operation of the cooling tower.

Optional Customized Control Cabinet
Through the control cabinet, the operation and maintenance inspection personnel can visually monitor the operation status of the cooling tower, and then carry out timely and effective maintenance and energy-saving operation.
