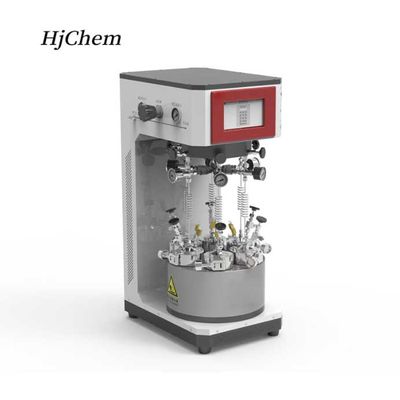

Hjchem - Custom Parallel High Pressure Batch Synthesis Reactor
Parallel High Pressure Reactor: A system comprising multiple individual high-pressure reaction vessels operating simultaneously under identical or independently controlled high-pressure conditions.Most popular related searches
high-pressure feed pump
gas mass flow metering
gas mass flow meter
mass flow metering
gas mass flow
mass flow meter
reaction vessel
gas flow meter
flow meter
mass flow
- The number of parallel reaction vessels can be customized,2/4/6/8/10...
- Volume: 10/25/50/100/250/500ml (customizable）
- Material: 316L (other special materials customizable)
- Structure: Flange/Quick-Opening/One-button quick-opening type
- Heating method: electrical heating/oil heating.
- Temperature: RT-300°C (customizable)
- Pressure: -0.1-10MPa (customizable)
- Agitation Method: mechnical stirring/magnetic stirring
- Valves: Two 1/4″ ferrule valve
- Power Supply: AC220V, 50HZ/60HZ
- Control: Touch screen control
- Isobaric Feeding: Add liquid reactants during reaction (controlled total volume)
- High-Pressure Feed Pump: Introduce liquid reactants during reaction (precise flow rate control)
- Gas Mass Flow Meter: Accurately measure cumulative gas flow and instantaneous flow rate
- Built-in Cooling Coil: Enables rapid internal reactor cooling
- Condenser: Provides condensation reflux or solvent recovery functionality
