NuVant Systems - Model ArrayPGstat -Customizable Multichannel Potentiostat/Galvanostat

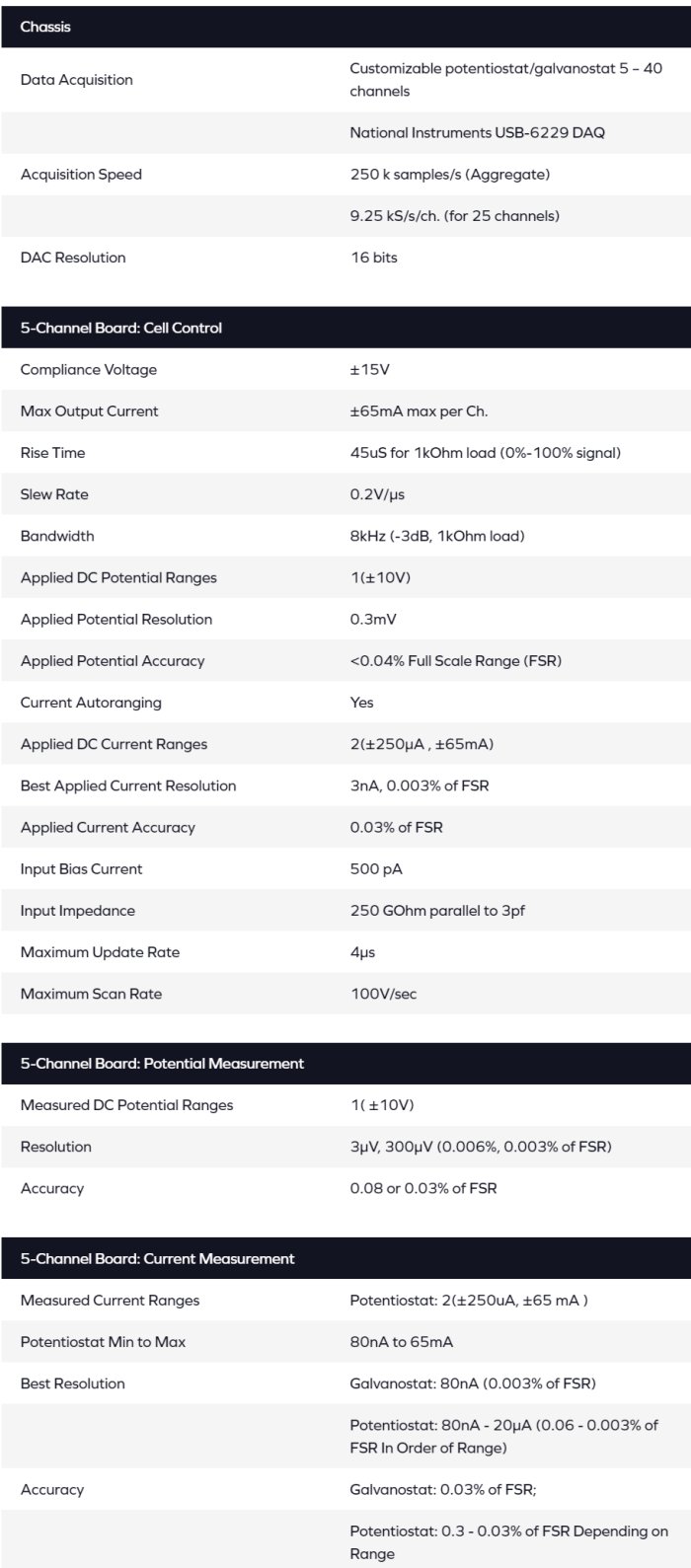

The ArrayPGstat by NuVant Systems is a versatile and customizable multichannel potentiostat/galvanostat designed for a wide range of electrochemical applications. Supporting between 5 to 40 channels, this modular system can accommodate additional channel and signal sources as required. It is specifically engineered for tasks such as battery charge-discharge cycling with a unique wait-and-hold feature, ensuring that all cells complete their cycles at an identical state-of-charge. The ArrayPGstat delivers a compliance voltage of ±15 V and controls up to ±10 V, with an acquisition speed of 250kS/s and a bandwidth of 8 kHz. It also supports a maximum scan rate of 100 V/sec, with customized current ranges available. Furthermore, it provides up to four waveform signal sources, making it suitable for complex testing scenarios.
