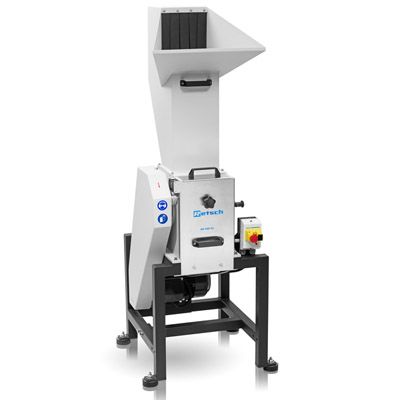

Glen-Mills - Model SM 400 -Cutting Mill
Cutting mills are suitable for the grinding of soft, medium-hard, tough, elastic, fibrous, and heterogeneous mixes of products. The Cutting Mill SM 400 is ideally suited for pre-cutting of large sample pieces but, depending on the application, may also achieve the required fineness in one step. The high torque of the new 3 kW drive allows for an exceptionally effective preliminary size reduction of heterogeneous mixtures, such as waste or electronic components.
The cutting mill is used successfully for a great variety of materials. The sample is only moderately warmed up during the grinding process so that the mill is perfectly suitable for grinding temperature-sensitive materials. Due to the large open surface of the 240 mm x 240 mm bottom sieve, it is possible to grind large sample quantities and to increase the throughput.
When operated with the optional cyclone-suction-combination, the SM 400 is also suitable for grinding light sample materials. In combination with the wide choice of bottom sieves, hoppers and collecting vessels, the mill can be easily adapted to varying application requirements.
Animal Feed, Bones, Cables, Cardboard, Feed Pellets, Foils, Food, Hay, Leather, Lignite, Material Mixtures, Paper, PET Preforms…
- Powerful size reduction thanks to 3 kW drive
- Optimum cutting effects
- Accepts large feed sizes up to 170 mm x 220 mm
- Quick and easy cleaning due to fold-back hopper, smooth surfaces
- Defined final fineness due to bottom sieves with aperture sizes from 1 – 20 mm
Size reduction in the Cutting Mill SM 400 takes place by cutting and shearing forces. The sample hits the rotor and is comminuted between the blades and the stationary cutting bars inserted in the housing.
Thanks to the wide range of accessories, the SM 400 can be easily adapted to different application requirements
- Applications: size reduction by cutting
- Field of application: agriculture, biology, chemistry / plastics, engineering / environment / recycling, food, medicine / pharmaceuticals
- Feed material: soft, medium-hard, tough, elastic, fibrous
- Size reduction principle: shearing, cutting
- Material feed size* < 170 x 220 mm
- Final fineness*: 1 – 20 mm
- Grinding chamber volume: ~7.45L
- Speed at 50 Hz (60 Hz): 280 min-1
- Rotor peripheral speed: 2.25 m/s
- Rotor diameter: 152 mm
- Types of rotors: parallel section rotor
- Types of hoppers: universal, long stock
- Material of grinding tools: hardened steel, tungsten carbide
- Sieve sizes: trapezoid holes 1.00 / 2.00 mm // round holes 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm
- Collector systems / capacities: collecting receptacle 5 l // optional: cyclone-suction combination
- Drive: 3-phase motor
- Drive power: 3 kW
- Electrical supply data: different voltages
- Power connection: 3-phase
- Engine brake: –
- Protection code: IP 54
- W x H x D closed: 695 x 1399 x 719 mm
- Net weight: ~ 180 kg
- Standards: CE
