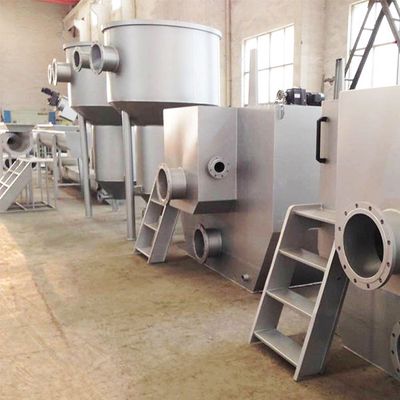

Loren - Model GR-1830/6100 -Cyclone Grit Removal Chamber Sand Suction Machine
LGR model Cyclone grit chamber sand suction machine/ swirl stream grit tank removal unit /Rotating blade grit removal unit. This unit generally applied after fine bar screen (mechanical grid),before entering primary sedimentation tank, this machine can separate large grain (DN over than 0.5mm) in sewage, most adopt air lifting , if use pump lifting, it has a high requirement of pump damage, the steel tank body applied in mediate and small flow volume field.
Loren LGR Series Grit Removal System :
This Grit Purifier Featured with Large Capacity with Small Room
It is Composed of Both Cyclone Grit Sinking Tank With Agitator or Gas Vortex Flow with Water and Another matching Grit Seperator through a 60 degree Tuber with valve and reducer .For Large Capaicty , The Sand Sink Tank Can be Made as RCC Structrue or 2- 3 sets of Steel Tanks
Payment & Shipping Terms:
- Minimum Order Quantity: 1 set
- Packaging Details: Wooden box
- Delivery Time: Within 45 days for 20GP
- Payment Terms: T/T or western union
- Supply Ability: 50 sets per Month

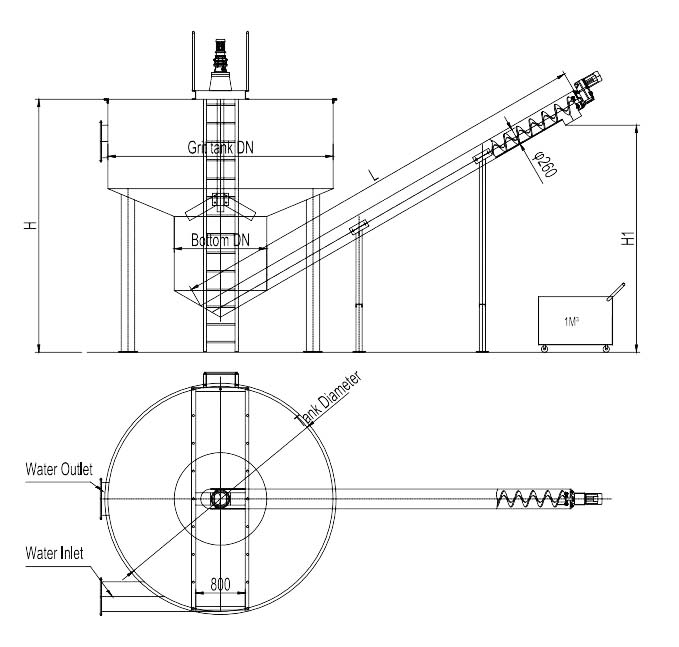

Working Principle and Structure
Raw water enters from tangential direction to form swirl stream with a certain velocity and flow pattern by impeller so that the adhesion of organic matter in the sand, gradually washing each other, and the resistance of gravity and swirling sand bucket sink to the center of action, stripped of organics with axial flow upward overflow away. Sand bucket sand accumulation through the air lift pump or sand pump upgrade into sand-water separator completely separated, sand separated row to the trash (tube) Sinotrans, sewage back to the grill well.
- Small footprint
- Sand sedimentation efficiency influence little by water volume change.
- Excellent separating function with little water moisture and organic material to fit for transport.
- Fully automatic PLC control safe and stable sand wash and removal period.
- Easy operation and simple maintenance with long life
- advanced blower makes sure low noise .
- Little influence toward surrounding environment with nice sanitary condition.
