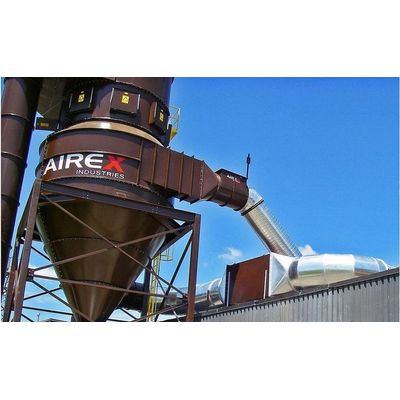

Cyclopulse - Cyclone Baghouse Dust Collector
This cyclonic effect baghouse dust collector is equipped with a cyclonic pre-separation module that is ideal for heavy dust loads because it limits the particles that are filtered in its media filtering module. Its remarkable efficiency is the result of many R&D testing efforts. It will meet even the most strict industry standards. The Airex Cyclopulse cyclonic effect baghouse dust collector ranks among the top available dust collecting systems for the wood processing industry and other heavy dust load applications.
- The dust travels toward the inside of the pre-separator.
- The cyclonic effect drops the larger dust particles into the cone and anti-vortex for disposal.
- The residual fine particles flow toward the media filtering module and are captured on the exterior surface of the bags.
- Air is filtered and re-circulated as the bags are cleaned periodically by the Airex Pulse Jet system, thus maintaining constant differential pressure.
The dust particles accumulate on the exterior surface of the bags. Compressed air is injected at regular intervals through the blow pipes to the venturi tube. A shock wave is then sent along the bags and particles fall to the bottom of the hopper.
Our self-cleaning system is built according to an optimal concept of nozzles and venturis that reduces compressed air consumption.
- 10 and 12 gauge mild steel construction
- 3/16’’ thick Tube Sheet
- Plant-assembled Interior fire Protection System
- Anti-deflagration doors as per NFPA 68
- 16 oz. 100% felt polyester filter bags and cages
- Standard 6” diameter cages and bags with snap-band system
- Access door for cleaning
- Hopper access door
- Differential pressure indicator
- Brass manual shut-off valves for all 1½” Goyen Pulse Valves
- Hopper level indicator
- Continuous discharge device
- Silencer
- Ladder and platform access
- Spark detection system
- Spark detector suppression system
- Abort dampers
- 2-way damper (summer/winter)
- Front flame deflector
- Fire detector
- CSA control panel with starter and PLC
- Pneumatic conveying system
