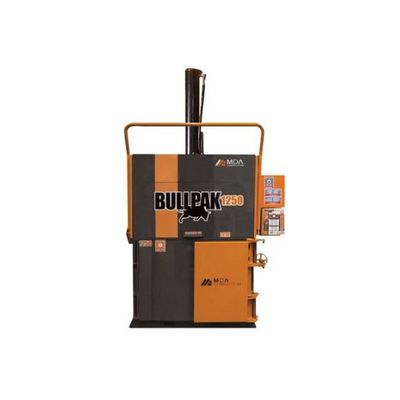

MDA Compaction - Model 1250 -Cylinder Baler
We offer the standard one cylinder model. This model has a cylinder that can be retracted when shipped and raised with its own power unit. This meaning that a forklift is not needed to raise the cylinder! It can be moved with a pallettruck and fit in a drybox for easier and cheaper shipping plus having its largest model at only 92 inches. Installation is easier than ever with this new design.
BULLPEN
The Bullpen is patented and secures the ejection area. Before ejecting, the operator must lower the security barrier. This option is equipped with magnetic contact that will authorize the ejection only if the Bullpen is lowered. It is useful in restrained areas or when the bale must be ejected in busy areas. A lowered Bullpen protects the hazardous zone and keeps the operator’s co-workers from standing nearby.
BULLGUARD
The Bullguard is patented and has been designed to keep the operator away during an ejecting operation. Furthermore, the Bullguard automatically takes back its position when the ejection door opens. The operator will be in a safe location during the ejection process in order to keep them from being trampled by the bale or at risk of being hit by a metal wire that could break during the bale expansion.
BULLHORN
The Bullhorn is a patented device that will secure the ram at the top of the baler and keep it from collapsing. As soon as the loading door opens, the Bullhorn interlocks with the ram and restrains it in an upper position. Thanks to the Bullhorn, three devices keep the ram from collapsing in case of breakage, contrary to standard Vertical BULLPAK balers in which only the hydraulic cylinder is attached to the ram.
THE SECUREPAK
The SECUREPAK option is for the electrical control system. A safety relay is added to the control and monitors the baler’s electrical operations. This way, the operator cannot attempt to bypass the safety system. This control option complies with the CAT.III Standards as well as ISO 13849-1,-25 Safety Equipment Standards.
- Bale ready light included
- Design fits in a dry box
- Can be moved with a pallet truck
- Control panel with a qr code that leads you to a video as well as the electrical and hydraulic diagrams
- Easily operated loading door due to bearings
- Automatic loading door opening at the end of the cycle
- Safe environment
- Submerged pump is quieter, only 85db
- Powerpak is on hinges
- Easily customized without welding
- Multiple safety options
- Automatic ejector
- Wire guide
- All moving parts are removable, if needed
- Parts are interchangeable between balers from the same series, regardless of the size
