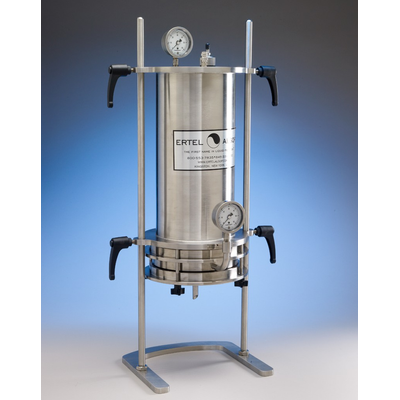

ErtelAlsop - Model 43T Series - Cylinder Laboratory Filters
FromErtelAlsop
The 43T Series Laboratory Filters are for use in laboratories to perform filtration trials and scalability studies. These units are constructed of 316 stainless steel with stainless steel cylinders for pressures up to 60 PSIG, or a protected Pyrex® glass cylinder for filtration up to 30 PSIG. Stainless steel cylinders can be furnished with an optional heating or cooling jacket.
Most popular related searches
laboratory filter
reservoir modeling
compressed air
pressure gauge
media filter
tube pump
liquid filter
laboratory filtration
sanitary pumping
sanitary pump
When running trials, which require more than one filtration stage, ErtelAlsop now includes our new dividing ring to provide for double filtration.
Small constant flow pumps, compressed air or inert gas can be used to flow liquid through the filter media. The O-Ring seal provides the versatility to use a variety of filter media of different composition and thickness.
- Stainless Steel Cylinder (Model 43T)
- Pressure Gauge
- EPDM Elastomer
- Stainless Steel Mounting Stand
- Pyrex Glass Cylinder (Model 43TP)
- Heating or Cooling Jacket (Model 43TJ)
- Single Sheet / No Reservoir (Model 43TS)
- Sanitary Connections
- Tubing and Pumps
- Elastomer Matierial – Teflon, Neoprene, Viton, Buna, Silicone
