ErtelAlsop
ErtelAlsop - Model 4T Series -Cylinder Laboratory Filters
FromErtelAlsop

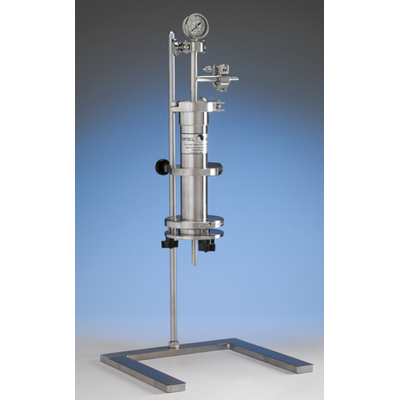

The 4T Series Laboratory Filters are designed for use in laboratories to perform filtration trials and scalability studies. These units are constructed of 316 stainless steel with stainless steel cylinders for pressures up to 60 PSIG, or a protected Pyrex® glass cylinder for filtration up to 30 PSIG. Stainless steel cylinders can be furnished with an optional heating or cooling jacket.
Most popular related searches
laboratory filter
reservoir modeling
pressure gauge
laboratory testing
tube pump
laboratory filtration
sanitary pumping
sanitary pump
When running trials, which require more than one filtration stage, ErtelAlsop now includes our new dividing ring to provide for double filtration.
ErtelAlsop is more than happy to work with you to modify our existing designs to meet specific requirements.
- Stainless Steel Cylinder (Model 4T)
- Pressure Gauge
- EPDM Elastomer
- Stainless Steel Mounting Stand
- Pyrex Glass Cylinder (Model 4TP)
- Heating or Cooling Jacket (Model 4TJ)
- Single Sheet / No Reservoir (Model 4TS)
- Sanitary Connections
- Tubing and Pumps
- Elastomer Material – Teflon, Neoprene, Viton, Buna, Silicone
